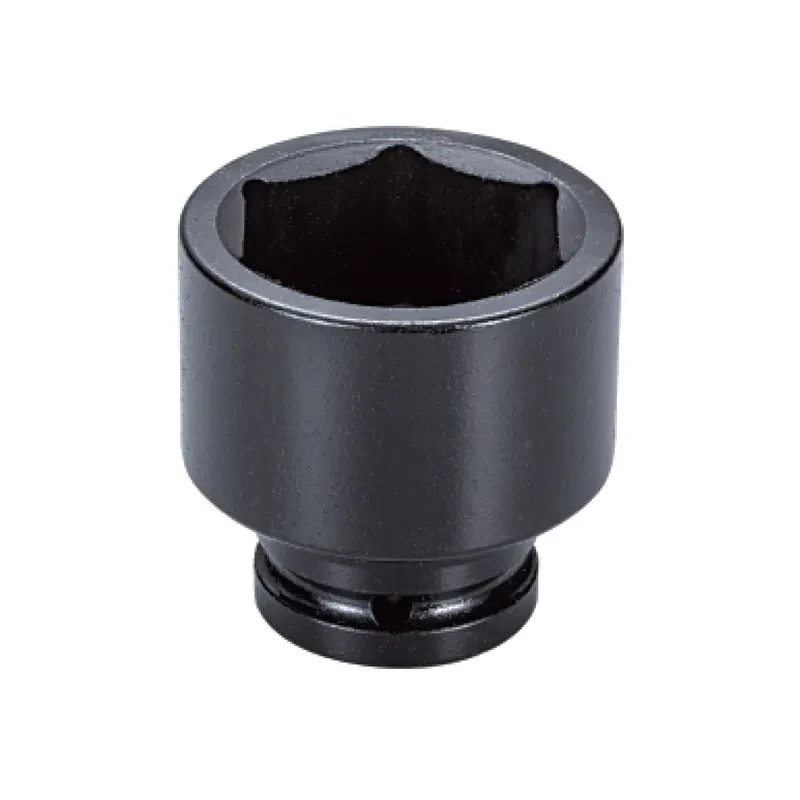

1-1/2" Enchufe de Impacto 6PT

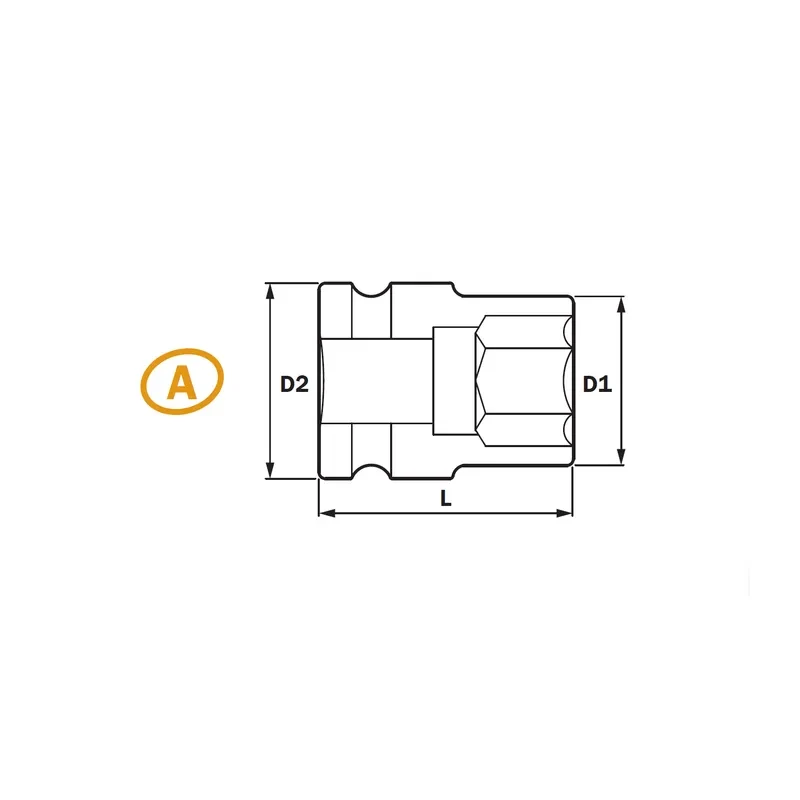

Especificación (MM)
| TIPO | NÚMERO DE ARTÍCULO | TAMAÑO | L(MM) | D2 | D1 |
| A | IE-S11236 | 36 | 78 | 86 | 64 |
| IE-S11237 | 37 | 78 | 86 | 65 | |
| IE-S11238 | 38 | 78 | 86 | 66 | |
| IE-S11239 | 39 | 80 | 86 | 68 | |
| IE-S11240 | 40 | 80 | 86 | 68 | |
| IE-S11241 | 41 | 82 | 86 | 70 | |
| IE-S11242 | 42 | 82 | 86 | 71 | |
| IE-S11243 | 43 | 82 | 86 | 73 | |
| IE-S11245 | 45 | 84 | 86 | 75 | |
| IE-S11246 | 46 | 84 | 86 | 76 | |
| IE-S11247 | 47 | 87 | 86 | 77 | |
| IE-S11248 | 48 | 87 | 86 | 79 | |
| IE-S11250 | 50 | 87 | 86 | 81 | |
| IE-S11252 | 52 | 87 | 86 | 83 | |
| B | IE-S11254 | 54 | 90 | 86 | 86 |
| IE-S11255 | 55 | 90 | 86 | 86 | |
| C | IE-S11256 | 56 | 92 | 86 | 88 |
| IE-S11258 | 58 | 92 | 86 | 92 | |
| IE-S11260 | 60 | 92 | 86 | 93 | |
| IE-S11261 | 61 | 95 | 86 | 95 | |
| IE-S11262 | 62 | 95 | 86 | 96 | |
| IE-S11263 | 63 | 95 | 86 | 97 | |
| IE-S11265 | 65 | 95 | 86 | 97 | |
| IE-S11268 | 68 | 100 | 86 | 104 | |
| IE-S11270 | 70 | 100 | 86 | 105 | |
| IE-S11272 | 72 | 103 | 86 | 108 | |
| IE-S11273 | 73 | 103 | 86 | 108 | |
| IE-S11275 | 75 | 103 | 86 | 110 | |
| IE-S11276 | 76 | 103 | 86 | 113 | |
| IE-S11277 | 77 | 103 | 86 | 114 | |
| IE-S11278 | 78 | 110 | 86 | 115 | |
| IE-S11280 | 80 | 110 | 86 | 116 | |
| IE-S11285 | 85 | 118 | 86 | 125 | |
| IE-S11288 | 88 | 118 | 86 | 128 | |
| IE-S11290 | 90 | 118 | 86 | 130 | |
| IE-S11295 | 95 | 118 | 95 | 137 | |
| IE-S112100 | 100 | 125 | 95 | 140 | |
| IE-S112105 | 105 | 125 | 95 | 150 | |
| IE-S112110 | 110 | 125 | 95 | 156 | |
| IE-S112115 | 115 | 135 | 95 | 160 | |
| IE-S112120 | 120 | 135 | 95 | 168 |
