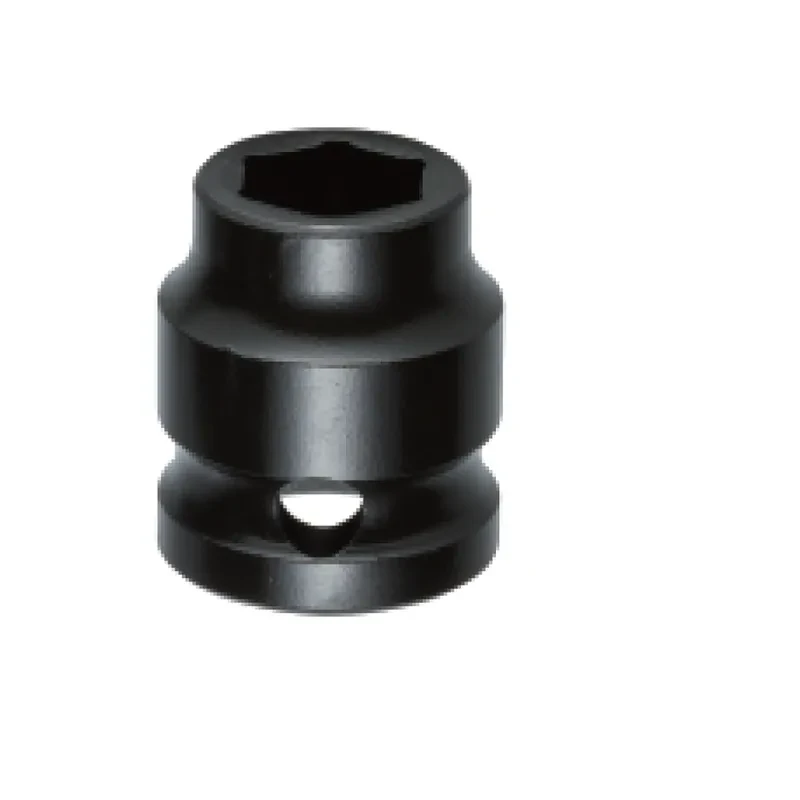

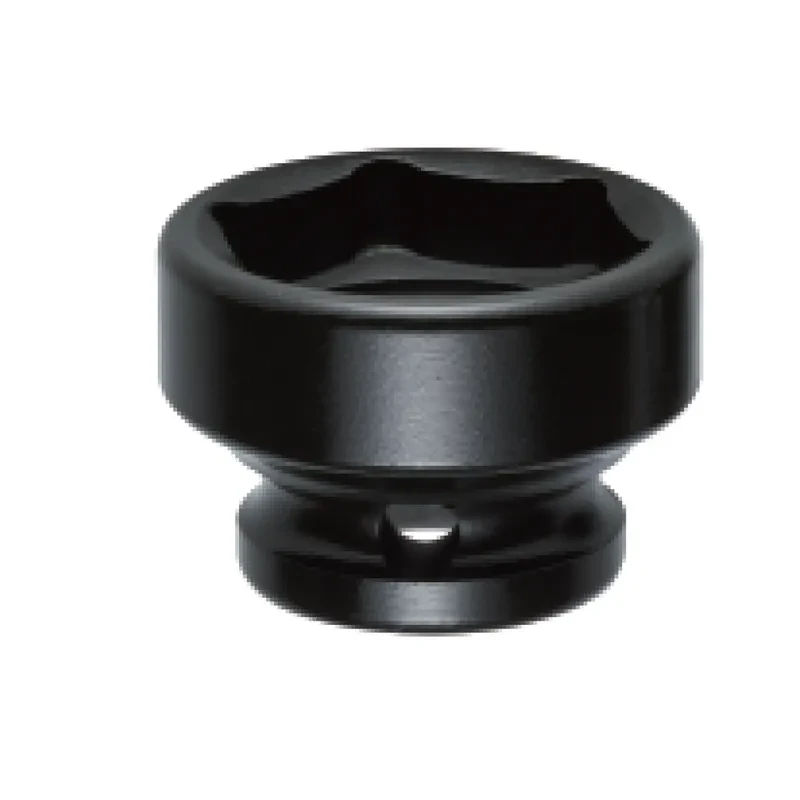

1/2" Extra Short Impact Socket 6PT&12PT
Specification (MM)

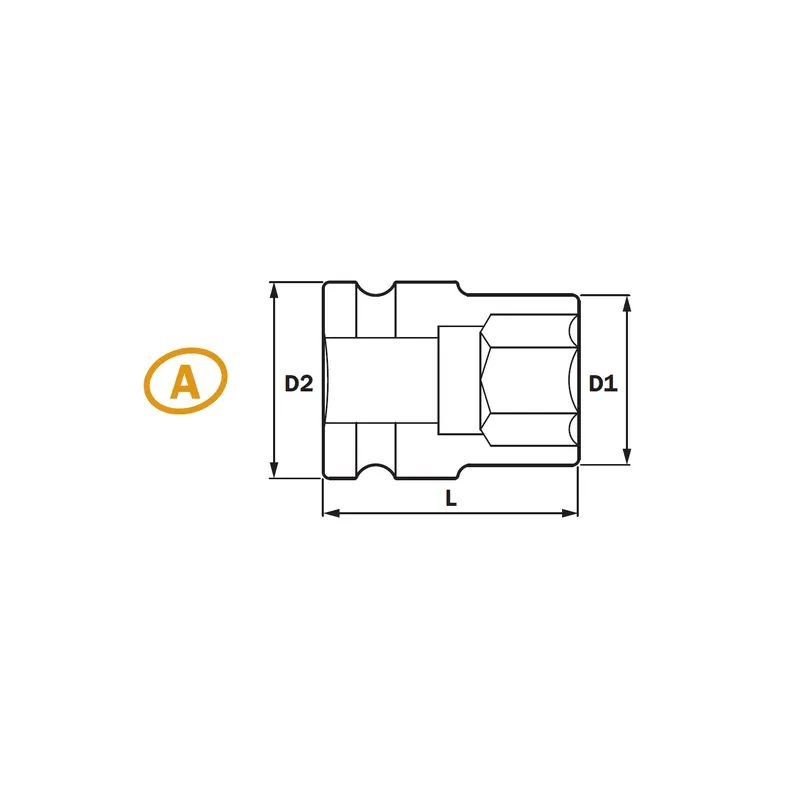

| TYPE | ITEM NO | SIZE | L(MM) | D2 | D1 |
| A | IE-SS1208 | 8 | 28 | 24 | 14 |
| IE-SS1209 | 9 | 28 | 24 | 15 | |
| IE-SS1210 | 10 | 28 | 24 | 17 | |
| IE-SS1211 | 11 | 28 | 24 | 18 | |
| IE-SS1212 | 12 | 28 | 24 | 19 | |
| IE-SS1213 | 13 | 28 | 24 | 21 | |
| IE-SS1214 | 14 | 28 | 24 | 22 | |

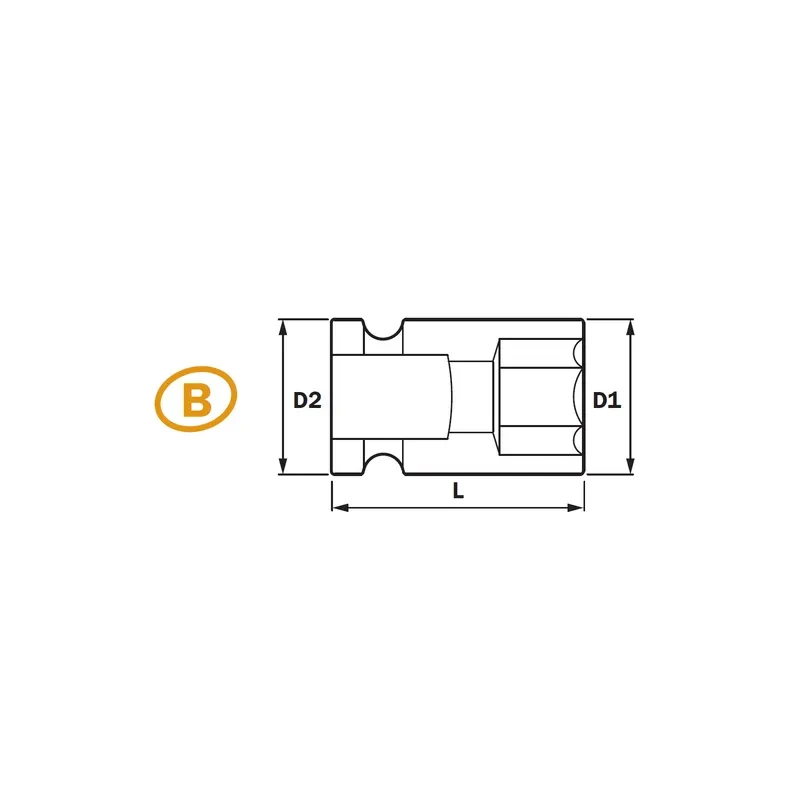

| B | IE-SS1215 | 15 | 28 | 24 | 24 |
| IE-SS1216 | 16 | 28 | 24 | 24 | |
| IE-SS1217 | 17 | 28 | 26 | 26 | |
| IE-SS1218 | 18 | 28 | 28 | 28 | |
| IE-SS1219 | 19 | 28 | 28 | 28 | |
| IE-SS1221 | 21 | 28 | 30 | 30 | |

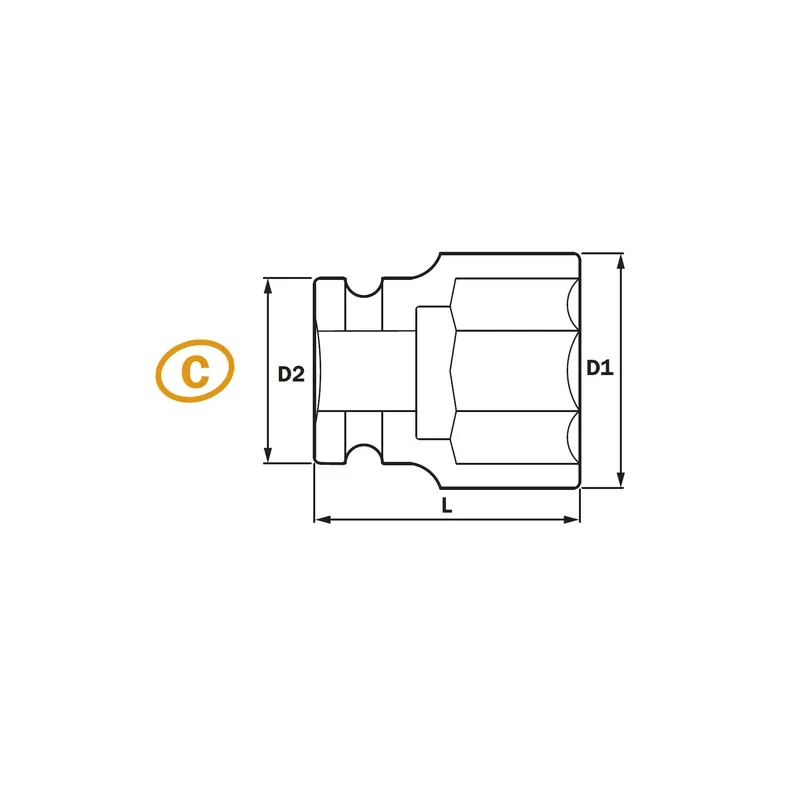

| C | IE-SS1222 | 22 | 28 | 30 | 32 |
| IE-SS1223 | 23 | 28 | 30 | 34 | |
| IE-SS1224 | 24 | 28 | 30 | 34 | |
| IE-SS1227 | 27 | 28 | 30 | 38 | |
| IE-SS1230 | 30 | 28 | 30 | 42 | |
| IE-SS1232 | 32 | 28 | 30 | 44 |
Specification (SAE)
| TYPE | ITEM NO | SIZE | L(MM) | D2 | D1 |
| A | IE-SS12516 | 5/16" | 28 | 24 | 14 |
| IE-SS1238 | 3/8" | 28 | 24 | 17 | |
| IE-SS12716 | 7/16" | 28 | 24 | 18 | |
| IE-SS12012 | 1/2" | 28 | 24 | 21 | |
| IE-SS12916 | 9/16" | 28 | 24 | 22 | |
| B | IE-SS1258 | 5/8" | 28 | 24 | 24 |
| IE-SS121116 | 11/16" | 28 | 26 | 26 | |
| IE-SS1234 | 3/4" | 28 | 28 | 28 | |
| IE-SS121316 | 13/16" | 28 | 30 | 30 | |
| C | IE-SS1278 | 7/8" | 28 | 30 | 32 |
| IE-SS121516 | 15/16" | 28 | 30 | 34 | |
| IE-SS1201 | 1" | 28 | 30 | 36 | |
| IE-SS1201116 | 1-1/16" | 28 | 30 | 38 | |
| IE-SS12118 | 1-1/8" | 28 | 30 | 40 | |
| IE-SS1201316 | 1-3/16" | 28 | 30 | 42 | |
| IE-SS12114 | 1-1/4" | 28 | 30 | 44 |
