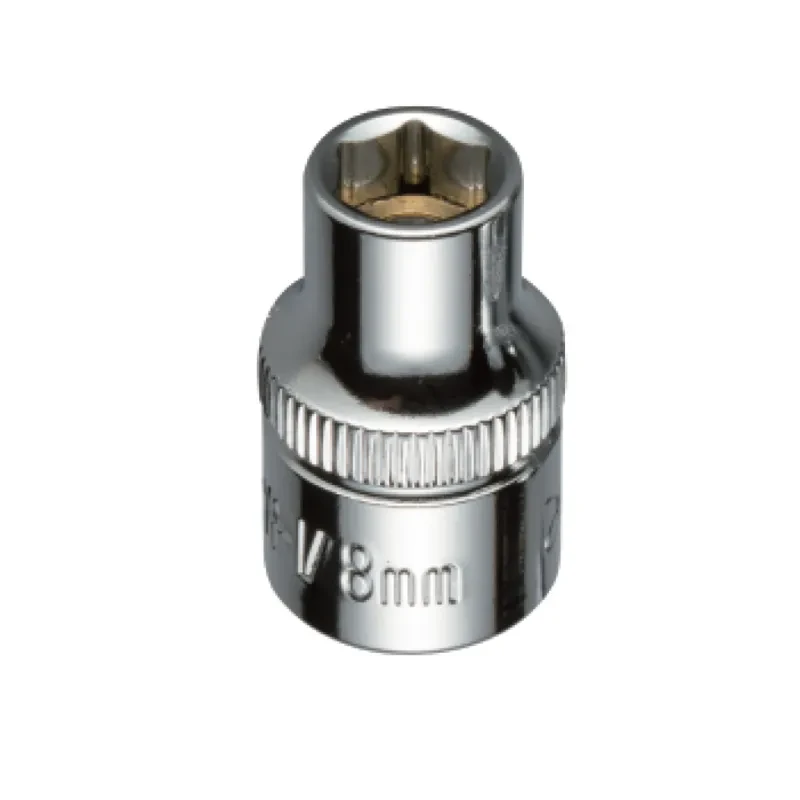

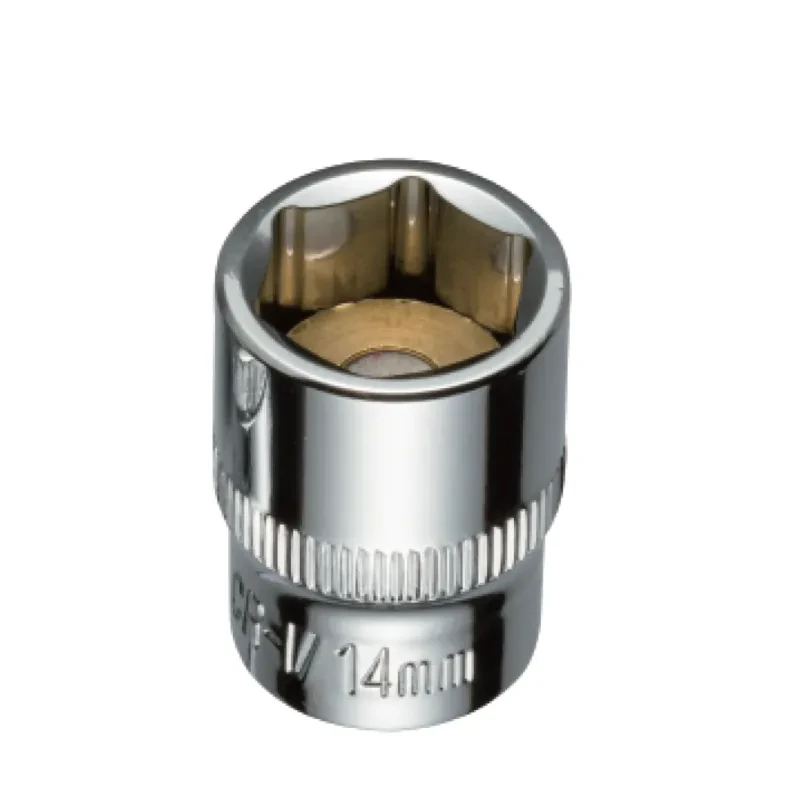

3/8" Magent Socket 6PT
Specification (MM)

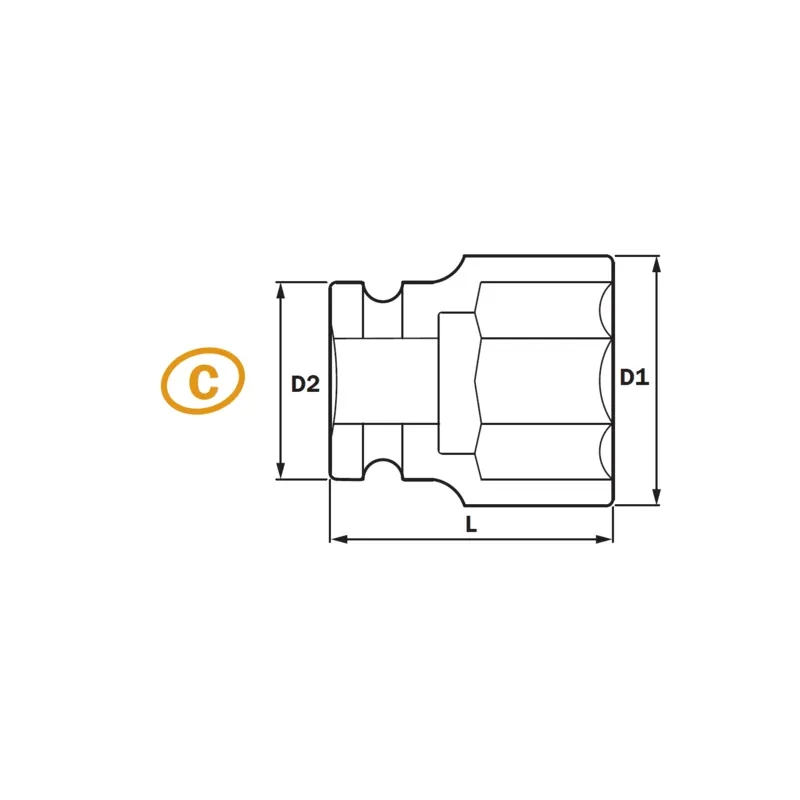

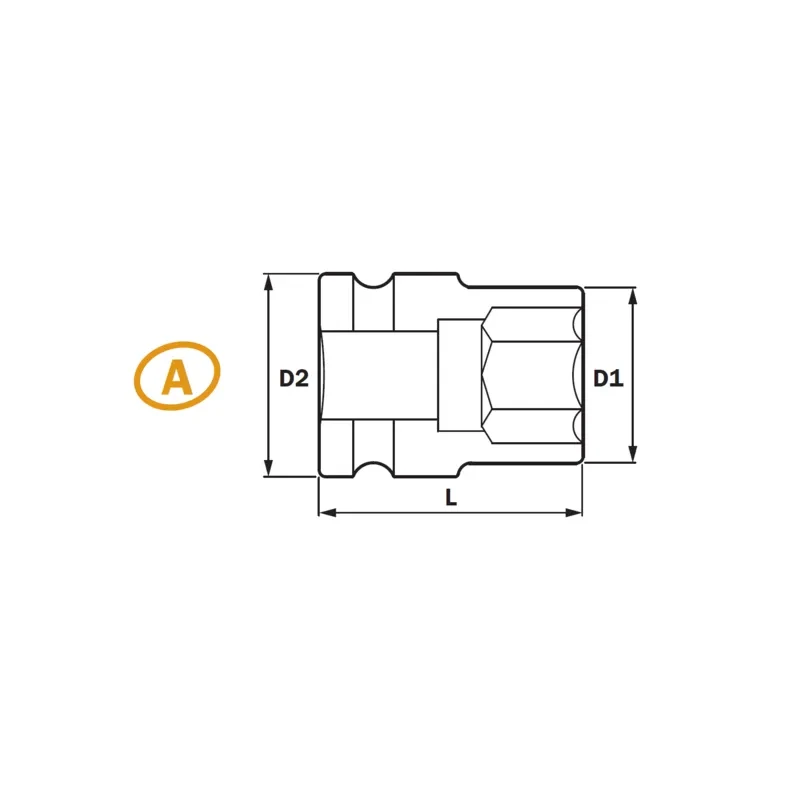

| TYPE | ITEM NO | SIZE | L(MM) | D2 | D1 |
| A | MS-S3808 | 8 | 28 | 17MM | 12MM |
| MS-S3809 | 9 | 28 | 17MM | 13.3MM | |
| MS-S3810 | 10 | 28 | 17MM | 14.5MM | |
| MS-S3811 | 11 | 28 | 17MM | 15.8MM | |
| MS-S3812 | 12 | 28 | 17MM | 16MM | |
| C | MS-S3813 | 13 | 28 | 17MM | 18MM |
| MS-S3814 | 14 | 28 | 18MM | 20MM | |
| MS-S3815 | 15 | 28 | 20MM | 22MM | |
| MS-S3816 | 16 | 28 | 20MM | 22MM | |
| MS-S3817 | 17 | 30 | 22MM | 24MM | |
| MS-S3818 | 18 | 30 | 23MM | 26MM | |
| MS-S3819 | 19 | 30 | 23MM | 26MM |
Product Inquiry
| Image | Product Name |
|---|---|
|
3/8" Magent Socket 6PT |
