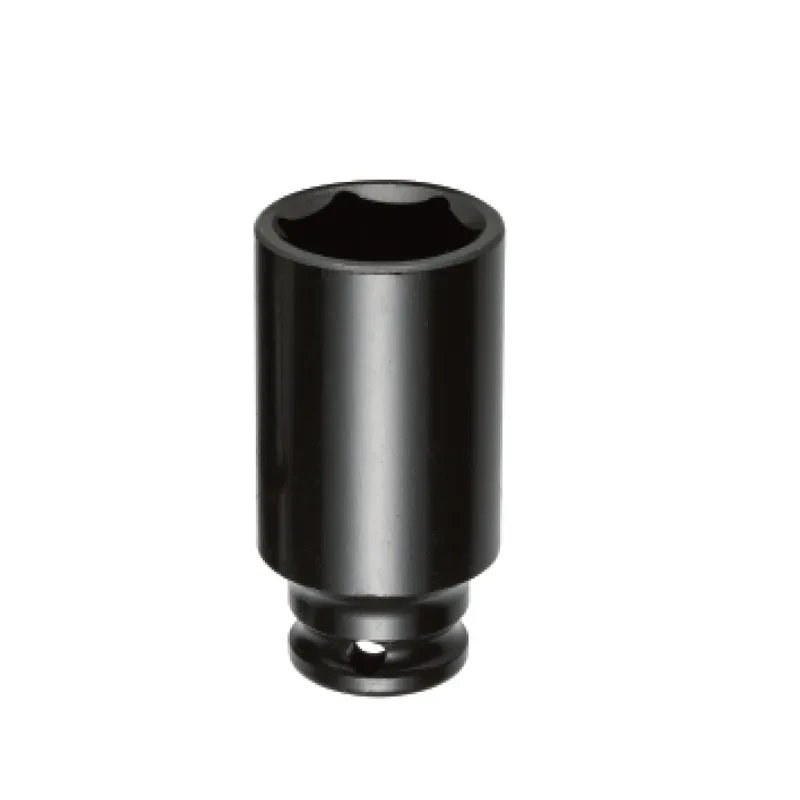

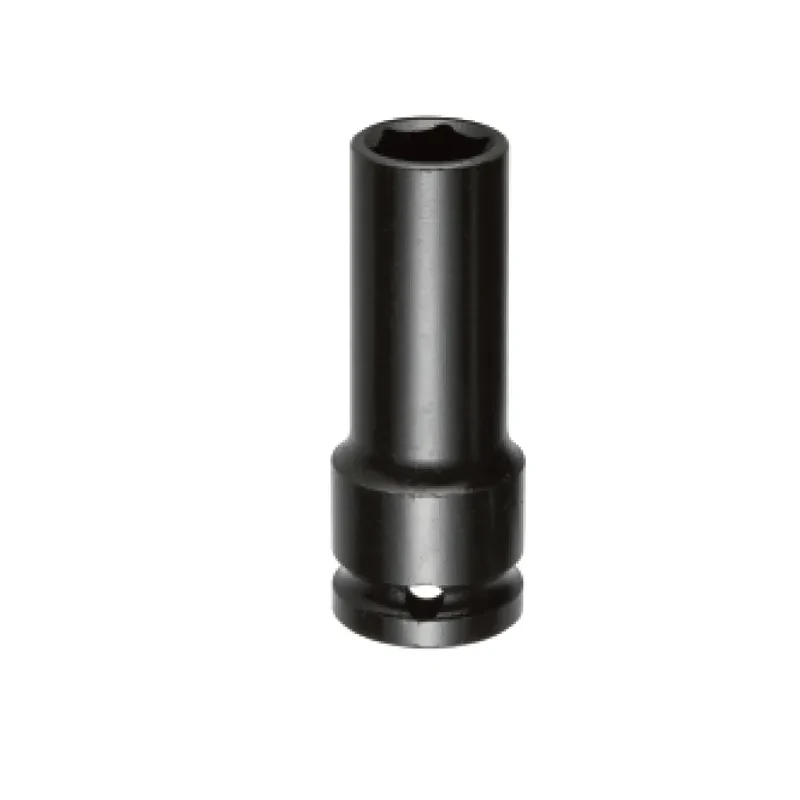

1/2" 深度衝擊套筒 (MM) 6PT&12PT
規格 (MM)
| 類型 | 項目編號 | 尺寸 | L(MM) | D2 | D1 |

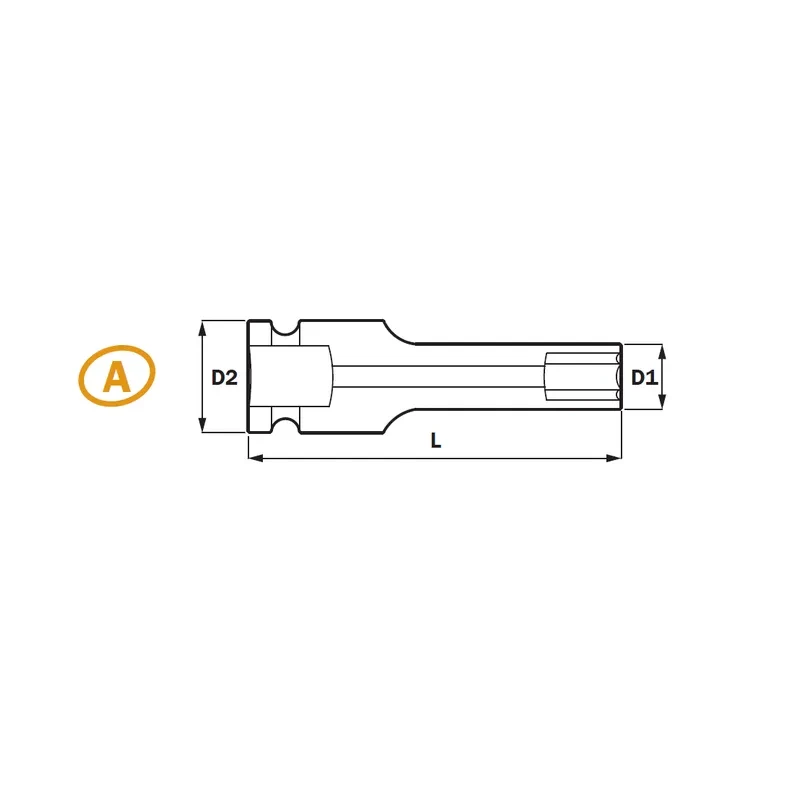

| A | IE-L1208 | 8 | 78 | 25 | 14 |
| IE-L1209 | 9 | 78 | 25 | 15 | |
| IE-L1210 | 10 | 78 | 25 | 17 | |
| IE-L1211 | 11 | 78 | 25 | 18 | |
| IE-L1212 | 12 | 78 | 25 | 19 | |
| IE-L1213 | 13 | 78 | 25 | 21 | |
| IE-L1214 | 14 | 78 | 25 | 22 | |
| IE-L1215 | 15 | 78 | 30 | 23 | |
| IE-L1216 | 16 | 78 | 30 | 24 | |
| IE-L1217 | 17 | 78 | 30 | 26 | |
| IE-L1218 | 18 | 78 | 30 | 27 | |
| IE-L1219 | 19 | 78 | 30 | 28 | |
| IE-L1220 | 20 | 78 | 30 | 29 | |

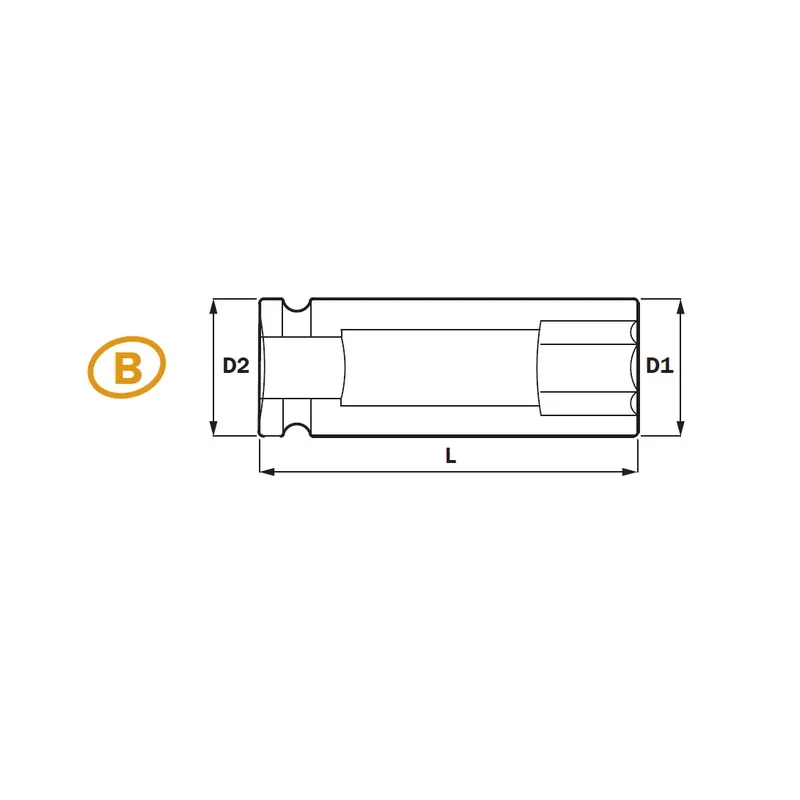

| B | IE-L1221 | 21 | 78 | 30 | 30 |

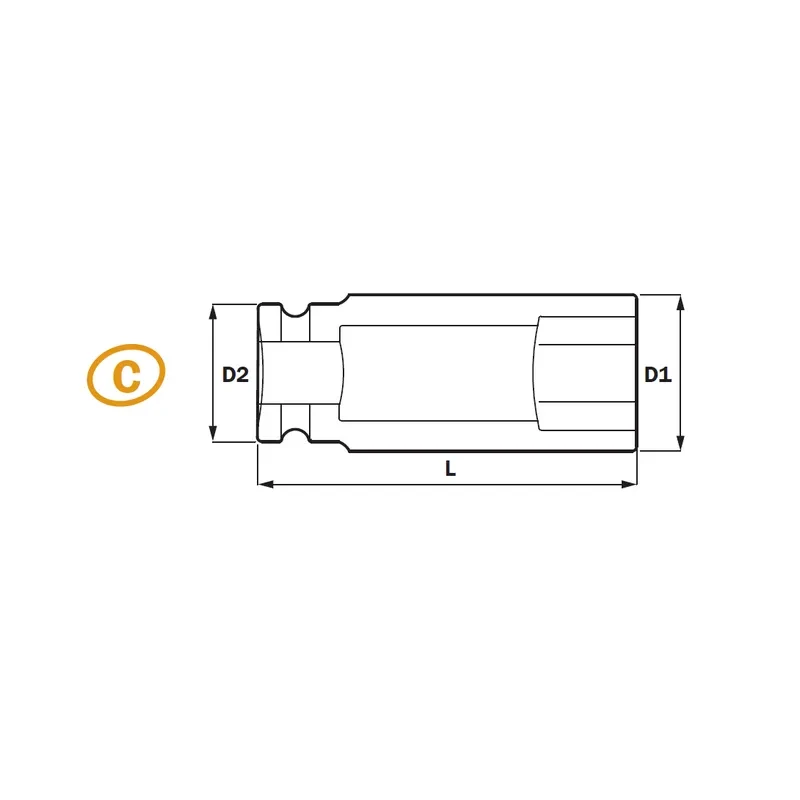

| C | IE-L1222 | 22 | 78 | 30 | 32 |
| IE-L1223 | 23 | 78 | 30 | 34 | |
| IE-L1224 | 24 | 78 | 30 | 34 | |
| IE-L1225 | 25 | 78 | 30 | 36 | |
| IE-L1226 | 26 | 78 | 30 | 38 | |
| IE-L1227 | 27 | 78 | 30 | 38 | |
| IE-L1228 | 28 | 78 | 30 | 40 | |
| IE-L1229 | 29 | 78 | 30 | 42 | |
| IE-L1230 | 30 | 78 | 30 | 42 | |
| IE-L1231 | 31 | 78 | 30 | 44 | |
| IE-L1232 | 32 | 78 | 30 | 44 | |
| IE-L1233 | 33 | 78 | 38 | 46 | |
| IE-L1234 | 34 | 78 | 38 | 48 | |
| IE-L1235 | 35 | 78 | 38 | 48 | |
| IE-L1236 | 36 | 78 | 38 | 50 | |
| IE-L1237 | 37 | 78 | 38 | 50 | |
| IE-L1238 | 38 | 78 | 38 | 52 | |
| IE-L1239 | 39 | 78 | 38 | 54 | |
| IE-L1241 | 41 | 78 | 38 | 56 | |
| IE-L1246 | 46 | 78 | 38 | 62 |
| 類型 | 項目編號 | 尺寸 | L(MM) | D2 | D1 |
| A | IE-LA1208 | 8 | 78 | 24 | 14 |
| IE-LA1209 | 9 | 78 | 24 | 15 | |
| IE-LA1210 | 10 | 78 | 24 | 17 | |
| IE-LA1211 | 11 | 78 | 24 | 18 | |
| IE-LA1212 | 12 | 78 | 24 | 19 | |
| IE-LA1213 | 13 | 78 | 24 | 21 | |
| IE-LA1214 | 14 | 78 | 24 | 22 | |
| B | IE-LA1215 | 15 | 78 | 24 | 24 |
| IE-LA1216 | 16 | 78 | 24 | 24 | |
| IE-LA1217 | 17 | 78 | 26 | 26 | |
| IE-LA1218 | 18 | 78 | 28 | 28 | |
| IE-LA1219 | 19 | 78 | 28 | 28 |
規範 (SAE)
| 類型 | 項目編號 | 尺寸 | L(MM) | D2 | D1 |
| A | IE-L12516 | 5/16" | 38 | 25 | 14 |
| IE-L12038 | 3/8" | 38 | 25 | 17 | |
| IE-L12716 | 7/16" | 38 | 25 | 18 | |
| IE-L12012 | 1/2" | 38 | 25 | 21 | |
| IE-L12916 | 9/16" | 38 | 25 | 22 | |
| IE-L1258 | 5/8" | 38 | 30 | 24 | |
| IE-L121116 | 11/16" | 38 | 30 | 26 | |
| IE-L12034 | 3/4" | 38 | 30 | 28 | |
| B | IE-L121316 | 13/16" | 38 | 30 | 30 |
| C | IE-L1278 | 7/8" | 38 | 30 | 32 |
| IE-L121516 | 15/16" | 40 | 30 | 34 | |
| IE-L1201 | 1" | 40 | 30 | 36 | |
| IE-L1201116 | 1-1/16" | 43 | 30 | 38 | |
| IE-L12118 | 1-1/8" | 43 | 30 | 40 | |
| IE-L1201316 | 1-3/16" | 43 | 30 | 42 | |
| IE-L12114 | 1-1/4" | 43 | 30 | 44 | |
| IE-L120156 | 1-5/16" | 48 | 38 | 46 | |
| IE-L120138 | 1-3/8" | 48 | 38 | 48 | |
| IE-L1201716 | 1-7/16" | 48 | 38 | 50 | |
| IE-L120112 | 1-1/2" | 48 | 38 | 52 |
| 類型 | 項目編號 | 尺寸 | L(MM) | D2 | D1 |
| A | IE-LA12516 | 5/16" | 78 | 24 | 14 |
| IE-LA1238 | 3/8" | 78 | 24 | 17 | |
| IE-LA12716 | 7/16" | 78 | 24 | 18 | |
| IE-LA12012 | 1/2" | 78 | 24 | 21 | |
| IE-LA12916 | 9/16" | 78 | 24 | 22 | |
| B | IE-LA1258 | 5/8" | 78 | 24 | 24 |
| IE-LA121116 | 11/16" | 78 | 26 | 26 | |
| IE-LA1234 | 3/4" | 78 | 28 | 28 |
