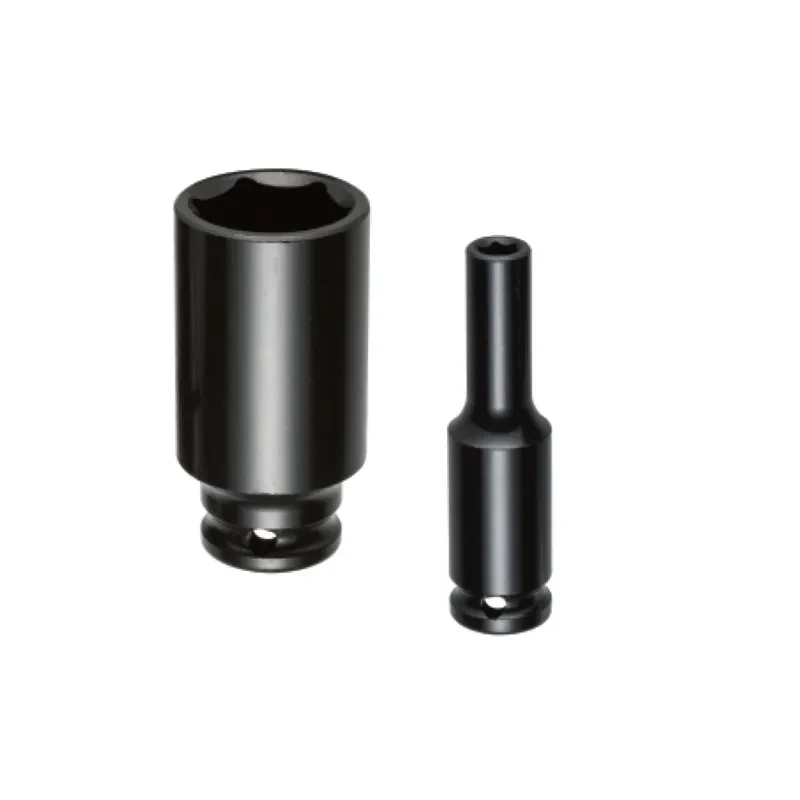

1/4" 深度衝擊套筒 6PT
規格 (MM)
| 類型 |
項目編號 |
尺寸 |
L(MM) |
D2 |
D1 |

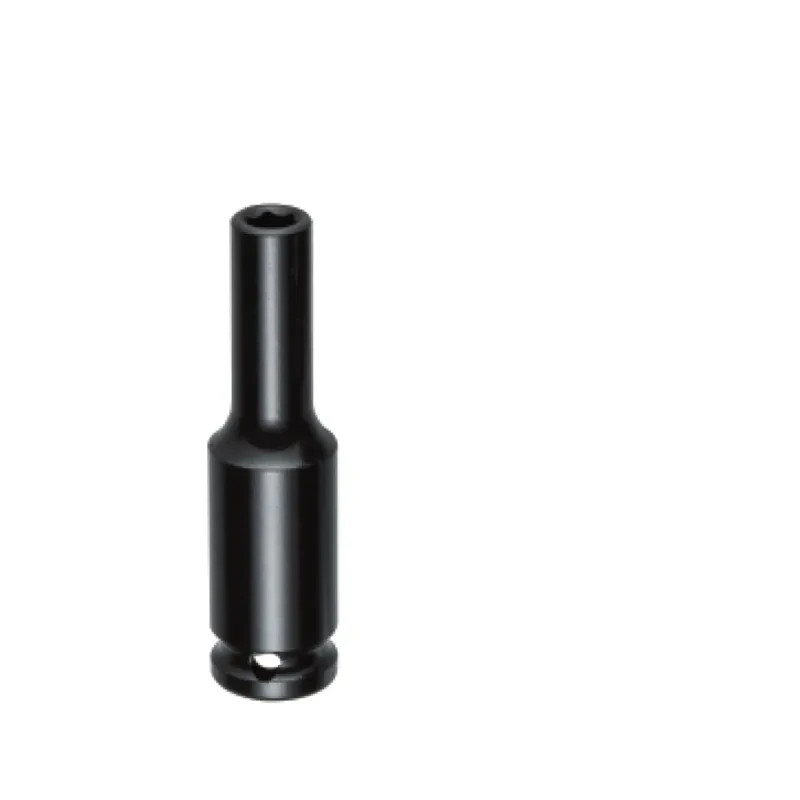

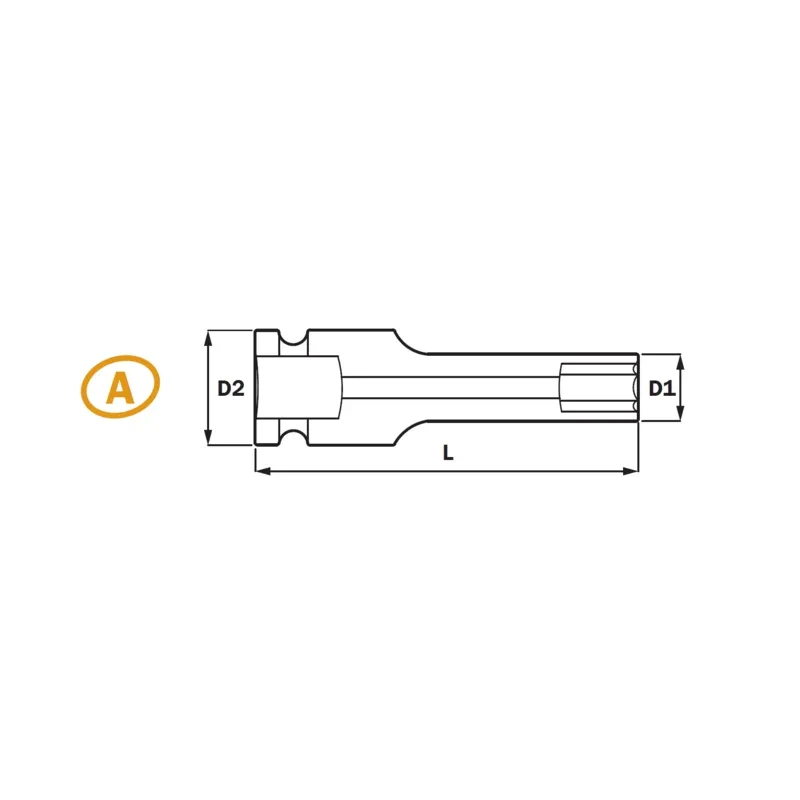

| A |
IE-L1404 |
4 |
50 |
13 |
7.6 |
| IE-L1445 |
4.5 |
50 |
13 |
8.2 |
| IE-L1405 |
5 |
50 |
13 |
8.8 |
| IE-L1455 |
5.5 |
50 |
13 |
9.5 |
| IE-L1406 |
6 |
50 |
13 |
10 |
| IE-L1407 |
7 |
50 |
13 |
11.3 |
| IE-L1408 |
8 |
50 |
13 |
12.5 |

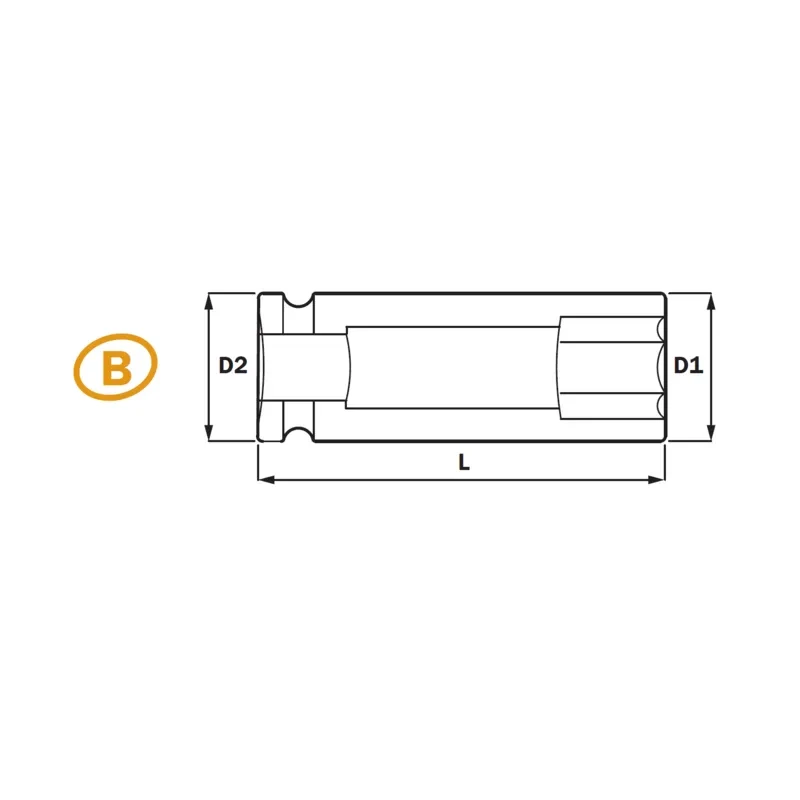

| B |
IE-L1409 |
9 |
50 |
13 |
13 |

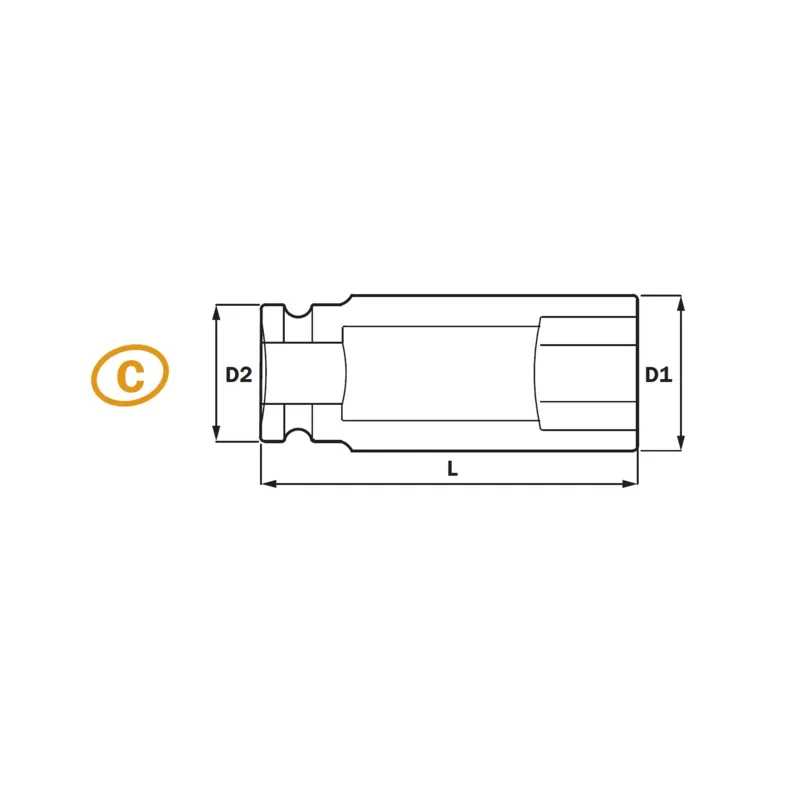

| C |
IE-L1410 |
10 |
50 |
13 |
14.3 |
| IE-L1411 |
11 |
50 |
13 |
15.8 |
| IE-L1412 |
12 |
50 |
13 |
16.8 |
| IE-L1413 |
13 |
50 |
13 |
18.8 |
| IE-L1414 |
14 |
50 |
13 |
19.8 |
| IE-L1415 |
15 |
50 |
13 |
20.8 |
規範 (SAE)
| 類型 |
項目號 |
尺寸 |
L(MM) |
D2(MM) |
D1 |
| A |
IE-L14316 |
3/16" |
50 |
13 |
8.4 |
| IE-L14532 |
5/32" |
50 |
13 |
9.4 |
| IE-L14014 |
1/4" |
50 |
13 |
10.3 |
| IE-L14932 |
9/32" |
50 |
13 |
11.3 |
| IE-L14516 |
5/16" |
50 |
13 |
12.3 |
| B |
IE-L141132 |
11/32" |
50 |
13 |
13 |
| C |
IE-L1438 |
3/8" |
50 |
13 |
15 |
| IE-L14716 |
7/16" |
50 |
13 |
16.3 |
| IE-L14012 |
1/2" |
50 |
13 |
18.8 |
| IE-L14916 |
9/16" |
50 |
13 |
20 |
