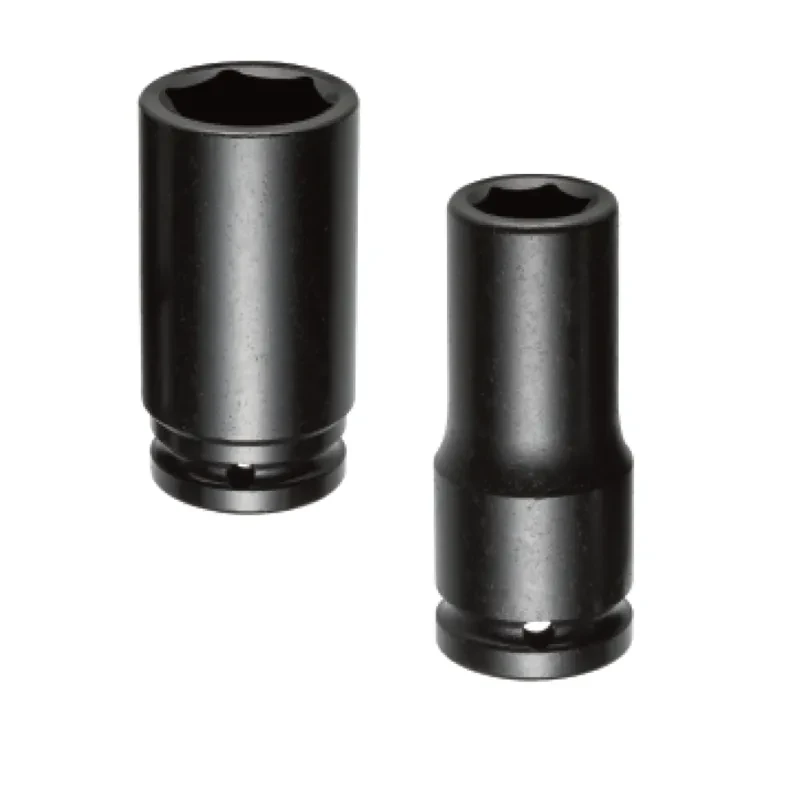

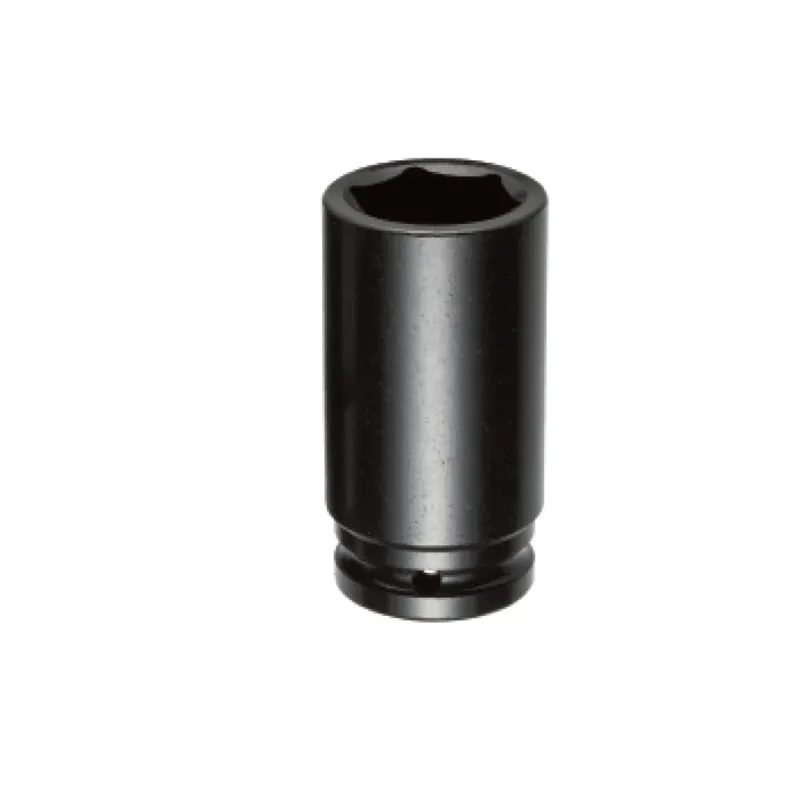

3/4" 深度衝擊套筒 6PT

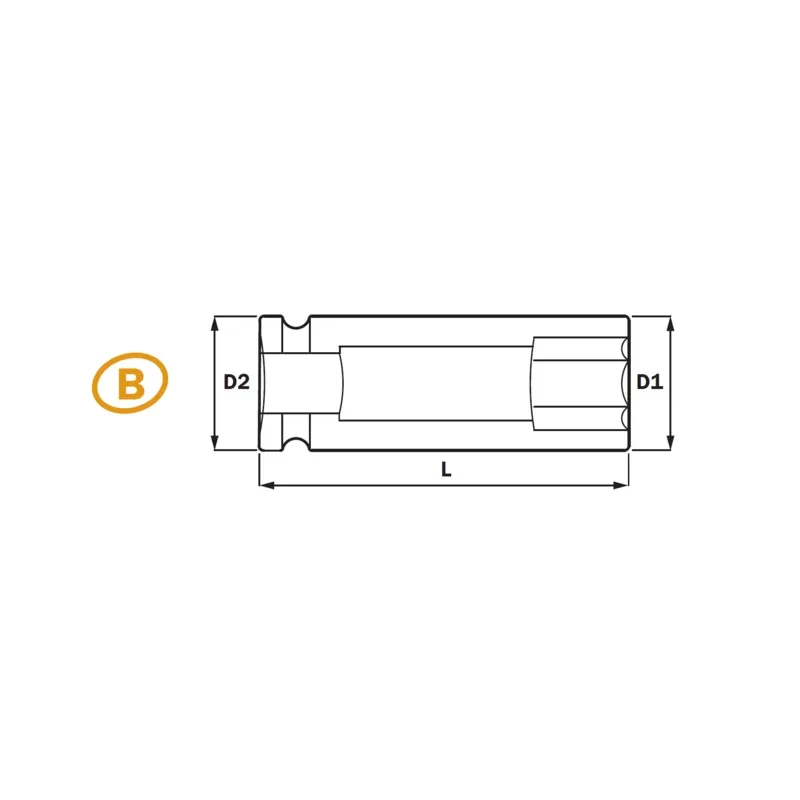

規格 (MM)
| 類型 |
項目編號 |
尺寸 |
L(MM) |
D2 |
D1 |
| A |
IE-L3417 |
17 |
90 |
38 |
29 |
| IE-L3418 |
18 |
90 |
38 |
30 |
| IE-L3419 |
19 |
90 |
38 |
32 |
| IE-L3420 |
20 |
90 |
38 |
34 |
| IE-L3421 |
21 |
90 |
40 |
35 |
| IE-L3422 |
22 |
90 |
40 |
36 |
| IE-L3423 |
23 |
90 |
40 |
37 |
| IE-L3424 |
24 |
90 |
40 |
38 |
| B |
IE-L3425 |
25 |
90 |
40 |
40 |
| IE-L3426 |
26 |
90 |
40 |
40 |
| IE-L3427 |
27 |
90 |
40 |
40 |
| IE-L3428 |
28 |
90 |
44 |
44 |
| IE-L3429 |
29 |
90 |
44 |
46 |
| IE-L3430 |
30 |
90 |
44 |
46 |
| C |
IE-L3432 |
31 |
90 |
44 |
48 |
| IE-L3433 |
32 |
90 |
44 |
50 |
| IE-L3434 |
33 |
90 |
44 |
51 |
| IE-L3435 |
34 |
90 |
44 |
52 |
| IE-L3436 |
35 |
90 |
44 |
54 |
| IE-L3437 |
36 |
90 |
44 |
54 |
| IE-L3438 |
37 |
90 |
44 |
56 |
| IE-L3439 |
38 |
90 |
44 |
58 |
| IE-L3440 |
39 |
90 |
44 |
58 |
| IE-L3441 |
40 |
90 |
44 |
60 |
| IE-L3442 |
41 |
90 |
44 |
62 |
| IE-L3443 |
42 |
92 |
44 |
64 |
| IE-L3444 |
43 |
92 |
44 |
64 |
| IE-L3446 |
44 |
92 |
44 |
66 |
| IE-L3448 |
45 |
92 |
44 |
68 |
| IE-L3450 |
46 |
95 |
54 |
71 |
| IE-L3454 |
47 |
100 |
54 |
77 |
| IE-L3455 |
48 |
100 |
54 |
77 |
| IE-L3460 |
49 |
105 |
54 |
84 |
| IE-L3465 |
50 |
105 |
54 |
88 |
| IE-L3470 |
51 |
110 |
54 |
96 |
