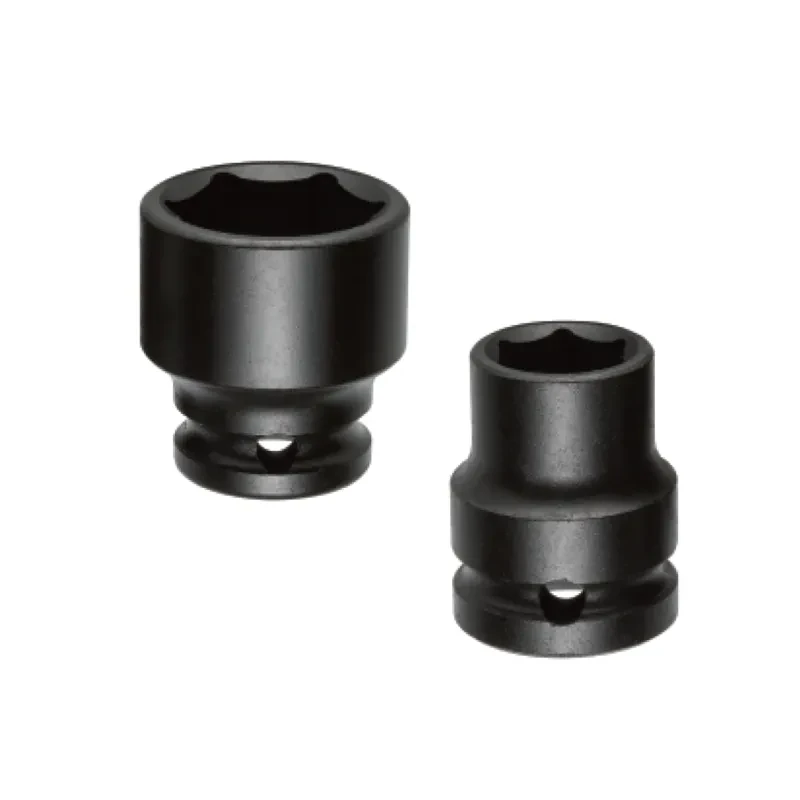

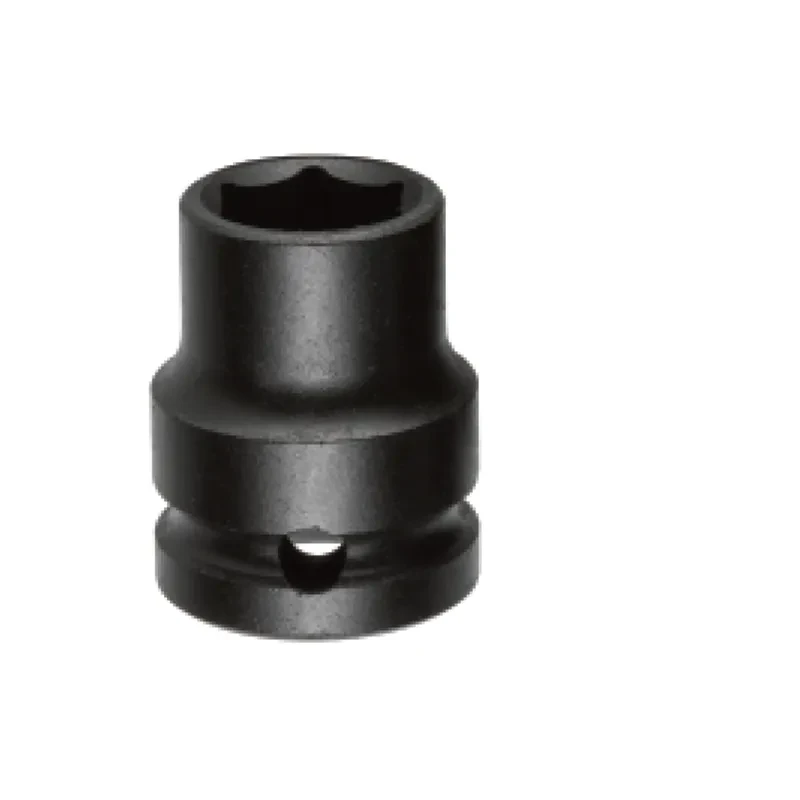

1/2" Impact Socket 6PT&12PT
Specification (MM)
| TYPE | ITEM NO | SIZE | L(MM) | D2 | D1 |

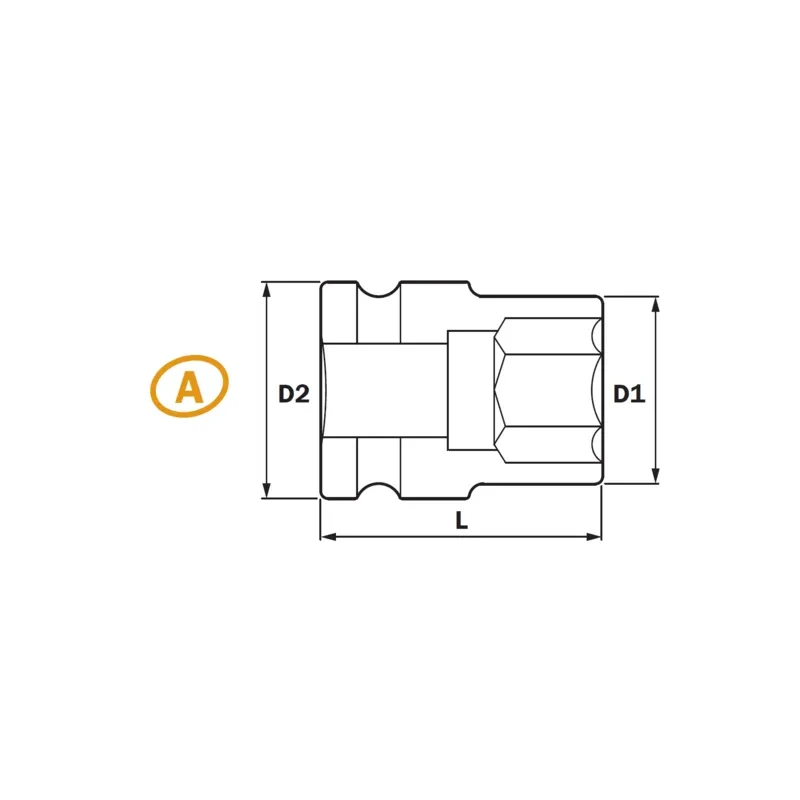

| A | IE-S1208 | 8 | 38 | 25 | 14 |
| IE-S1209 | 9 | 38 | 25 | 15 | |
| IE-S1210 | 10 | 38 | 25 | 17 | |
| IE-S1211 | 11 | 38 | 25 | 18 | |
| IE-S1212 | 12 | 38 | 25 | 19 | |
| IE-S1213 | 13 | 38 | 25 | 21 | |
| IE-S1214 | 14 | 38 | 25 | 22 | |
| IE-S1215 | 15 | 38 | 30 | 23 | |
| IE-S1216 | 16 | 38 | 30 | 24 | |
| IE-S1217 | 17 | 38 | 30 | 26 | |
| IE-S1218 | 18 | 38 | 30 | 27 | |
| IE-S1219 | 19 | 38 | 30 | 28 | |
| IE-S1220 | 20 | 38 | 30 | 29 | |

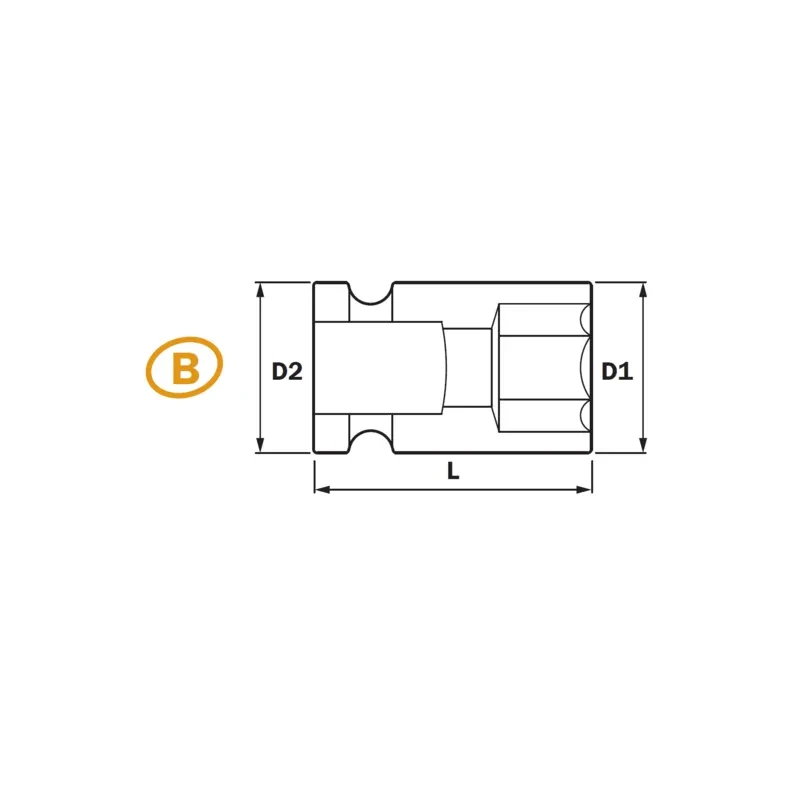

| B | IE-S1221 | 21 | 38 | 30 | 30 |

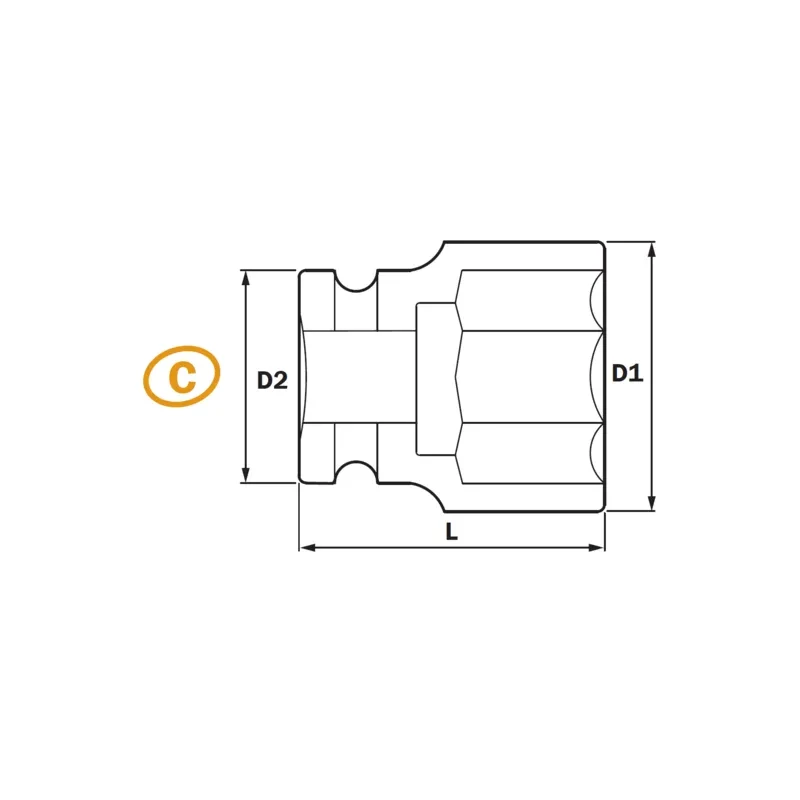

| C | IE-S1222 | 22 | 38 | 30 | 32 |
| IE-S1223 | 23 | 38 | 30 | 34 | |
| IE-S1224 | 24 | 40 | 30 | 34 | |
| IE-S1225 | 25 | 40 | 30 | 36 | |
| IE-S1226 | 26 | 43 | 30 | 38 | |
| IE-S1227 | 27 | 43 | 30 | 38 | |
| IE-S1228 | 28 | 43 | 30 | 40 | |
| IE-S1229 | 29 | 43 | 30 | 42 | |
| IE-S1230 | 30 | 43 | 30 | 42 | |
| IE-S1231 | 31 | 43 | 30 | 44 | |
| IE-S1232 | 32 | 43 | 30 | 44 | |
| IE-S1233 | 33 | 48 | 38 | 46 | |
| IE-S1234 | 34 | 48 | 38 | 48 | |
| IE-S1235 | 35 | 48 | 38 | 48 | |
| IE-S1236 | 36 | 48 | 38 | 50 | |
| IE-S1237 | 37 | 48 | 38 | 50 | |
| IE-S1238 | 38 | 48 | 38 | 52 | |
| IE-S1239 | 39 | 48 | 38 | 54 | |
| IE-S1241 | 41 | 54 | 38 | 56 | |
| IE-S1246 | 46 | 60 | 38 | 62 |
Specification (SAE)
| TYPE | ITEM NO | SIZE | L(MM) | D2 | D1 |
| A | IE-L12516 | 5/16" | 38 | 25 | 14 |
| IE-L12038 | 3/8" | 38 | 25 | 17 | |
| IE-L12716 | 7/16" | 38 | 25 | 18 | |
| IE-L12012 | 1/2" | 38 | 25 | 21 | |
| IE-L12916 | 9/16" | 38 | 25 | 22 | |
| IE-L1258 | 5/8" | 38 | 30 | 24 | |
| IE-L121116 | 11/16" | 38 | 30 | 26 | |
| IE-L12034 | 3/4" | 38 | 30 | 28 | |
| B | IE-L121316 | 13/16" | 38 | 30 | 30 |
| C | IE-L1278 | 7/8" | 38 | 30 | 32 |
| IE-L121516 | 15/16" | 40 | 30 | 34 | |
| IE-L1201 | 1" | 40 | 30 | 36 | |
| IE-L1201116 | 1-1/16" | 43 | 30 | 38 | |
| IE-L12118 | 1-1/8" | 43 | 30 | 40 | |
| IE-L1201316 | 1-3/16" | 43 | 30 | 42 | |
| IE-L12114 | 1-1/4" | 43 | 30 | 44 | |
| IE-L120156 | 1-5/16" | 48 | 38 | 46 | |
| IE-L120138 | 1-3/8" | 48 | 38 | 48 | |
| IE-L1201716 | 1-7/16" | 48 | 38 | 50 | |
| IE-L120112 | 1-1/2" | 48 | 38 | 52 |
