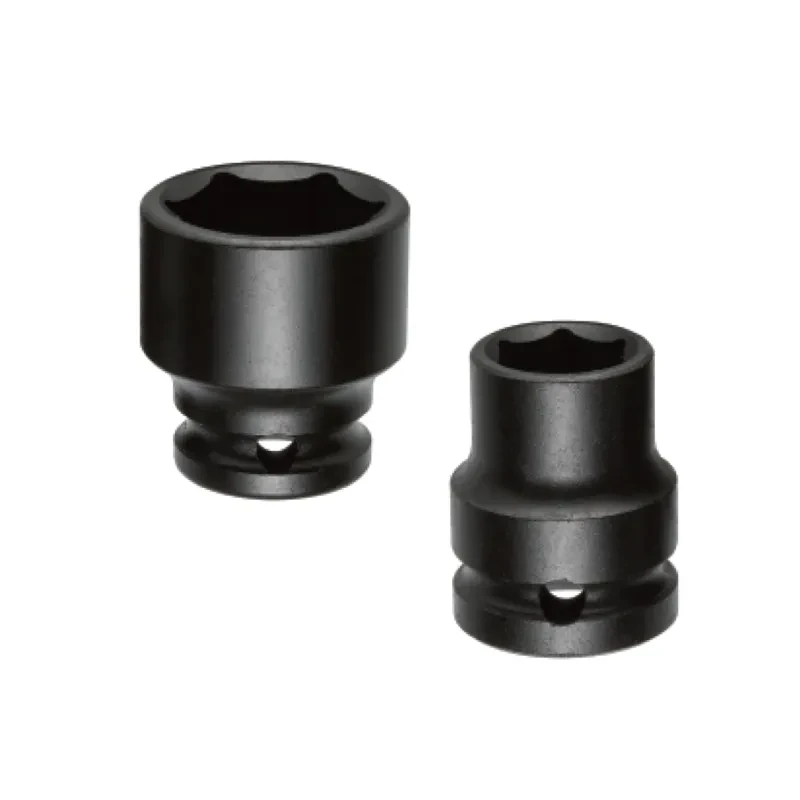

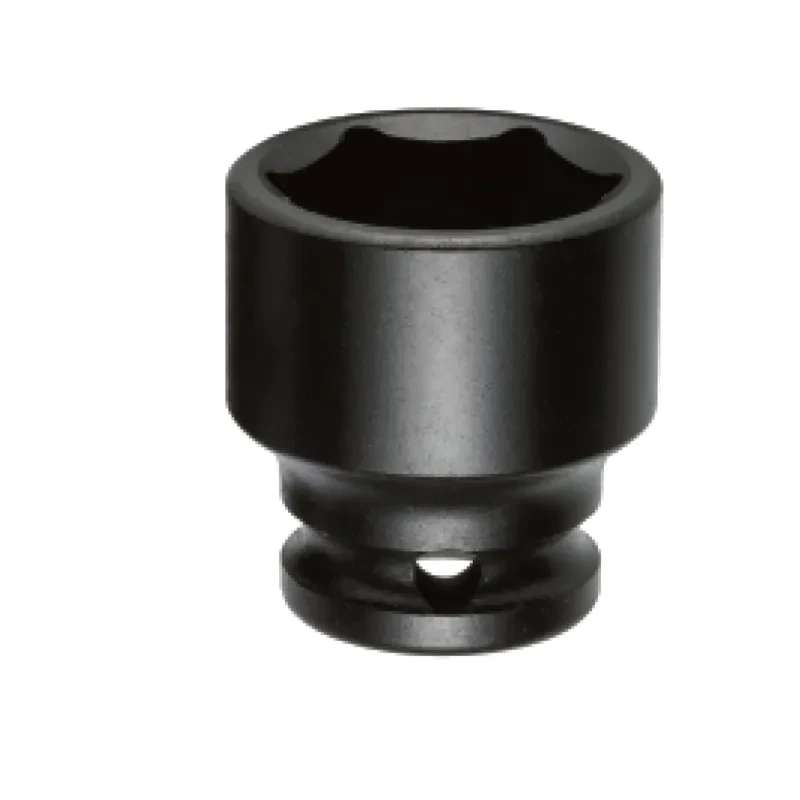

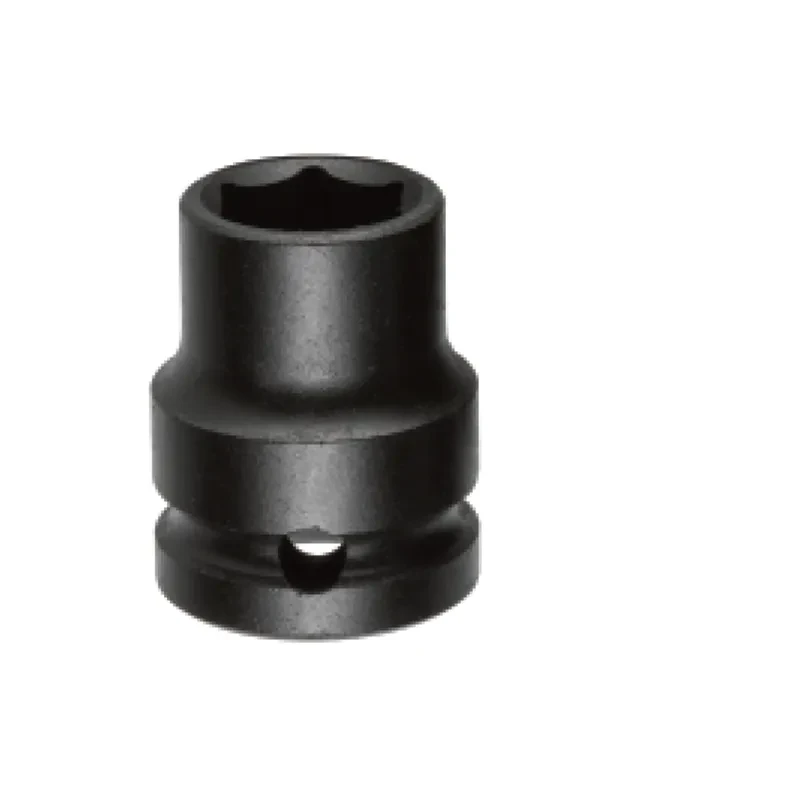

1/2" 衝擊套筒 6PT&12PT
規格 (MM)
| 類型 |
項目編號 |
尺寸 |
L(MM) |
D2 |
D1 |

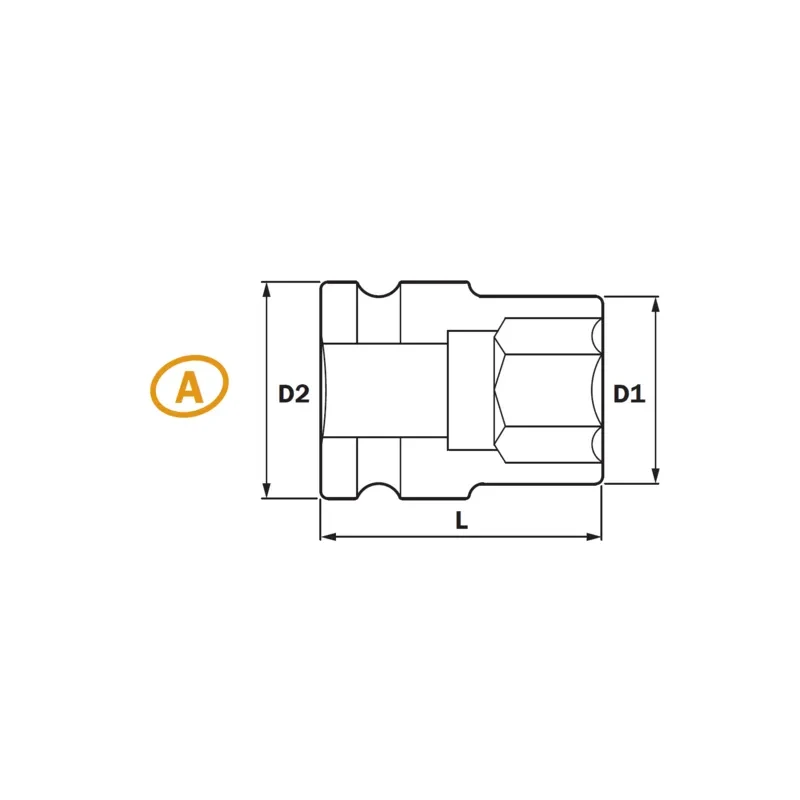

| A |
IE-S1208 |
8 |
38 |
25 |
14 |
| IE-S1209 |
9 |
38 |
25 |
15 |
| IE-S1210 |
10 |
38 |
25 |
17 |
| IE-S1211 |
11 |
38 |
25 |
18 |
| IE-S1212 |
12 |
38 |
25 |
19 |
| IE-S1213 |
13 |
38 |
25 |
21 |
| IE-S1214 |
14 |
38 |
25 |
22 |
| IE-S1215 |
15 |
38 |
30 |
23 |
| IE-S1216 |
16 |
38 |
30 |
24 |
| IE-S1217 |
17 |
38 |
30 |
26 |
| IE-S1218 |
18 |
38 |
30 |
27 |
| IE-S1219 |
19 |
38 |
30 |
28 |
| IE-S1220 |
20 |
38 |
30 |
29 |

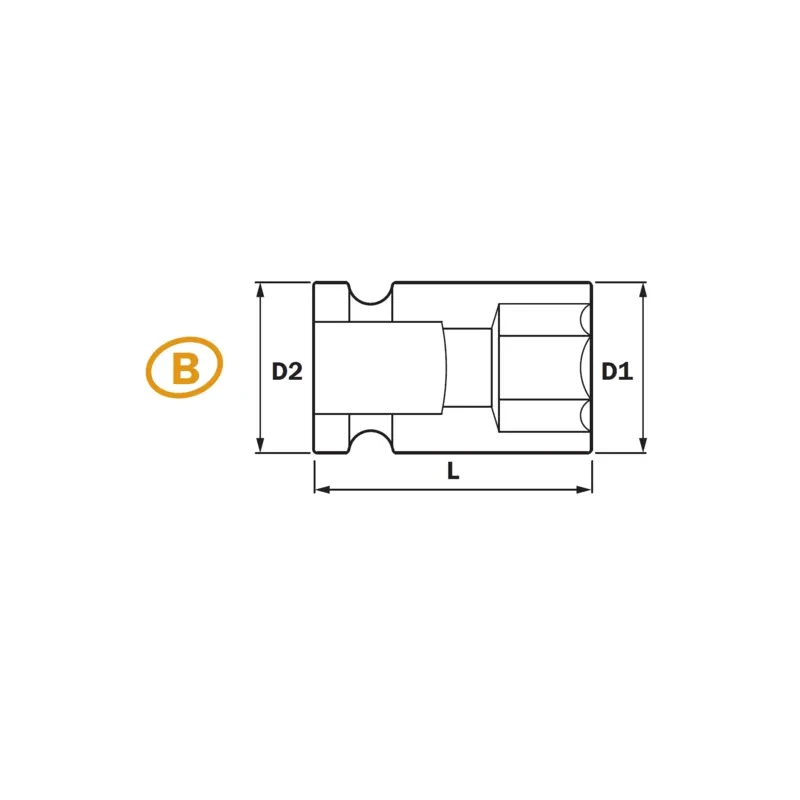

| B |
IE-S1221 |
21 |
38 |
30 |
30 |

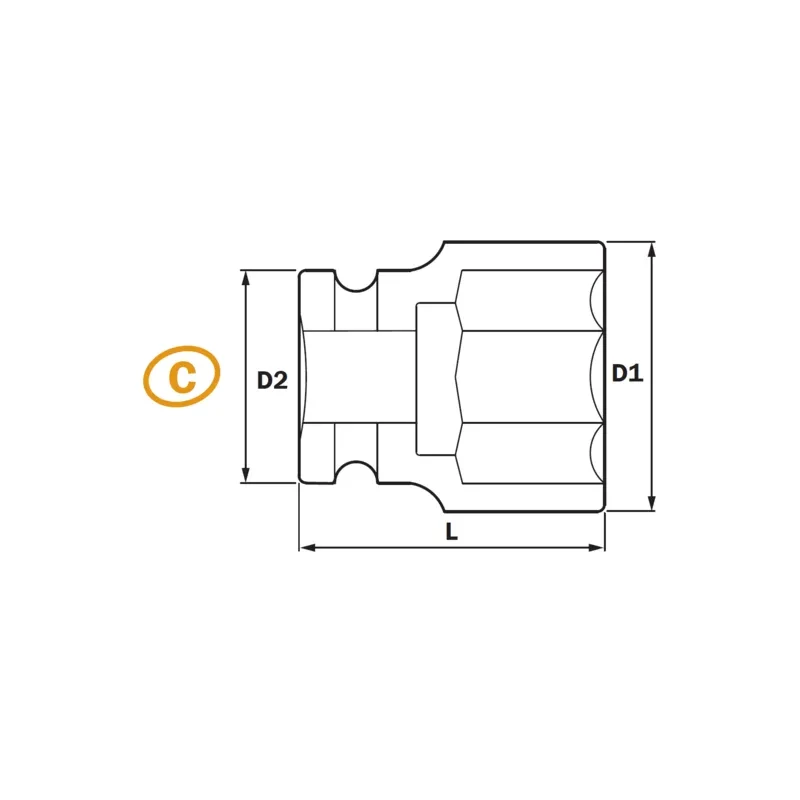

| C |
IE-S1222 |
22 |
38 |
30 |
32 |
| IE-S1223 |
23 |
38 |
30 |
34 |
| IE-S1224 |
24 |
40 |
30 |
34 |
| IE-S1225 |
25 |
40 |
30 |
36 |
| IE-S1226 |
26 |
43 |
30 |
38 |
| IE-S1227 |
27 |
43 |
30 |
38 |
| IE-S1228 |
28 |
43 |
30 |
40 |
| IE-S1229 |
29 |
43 |
30 |
42 |
| IE-S1230 |
30 |
43 |
30 |
42 |
| IE-S1231 |
31 |
43 |
30 |
44 |
| IE-S1232 |
32 |
43 |
30 |
44 |
| IE-S1233 |
33 |
48 |
38 |
46 |
| IE-S1234 |
34 |
48 |
38 |
48 |
| IE-S1235 |
35 |
48 |
38 |
48 |
| IE-S1236 |
36 |
48 |
38 |
50 |
| IE-S1237 |
37 |
48 |
38 |
50 |
| IE-S1238 |
38 |
48 |
38 |
52 |
| IE-S1239 |
39 |
48 |
38 |
54 |
| IE-S1241 |
41 |
54 |
38 |
56 |
| IE-S1246 |
46 |
60 |
38 |
62 |
規範 (SAE)
| 類型 |
項目編號 |
尺寸 |
L(MM) |
D2 |
D1 |
| A |
IE-L12516 |
5/16" |
38 |
25 |
14 |
| IE-L12038 |
3/8" |
38 |
25 |
17 |
| IE-L12716 |
7/16" |
38 |
25 |
18 |
| IE-L12012 |
1/2" |
38 |
25 |
21 |
| IE-L12916 |
9/16" |
38 |
25 |
22 |
| IE-L1258 |
5/8" |
38 |
30 |
24 |
| IE-L121116 |
11/16" |
38 |
30 |
26 |
| IE-L12034 |
3/4" |
38 |
30 |
28 |
| B |
IE-L121316 |
13/16" |
38 |
30 |
30 |
| C |
IE-L1278 |
7/8" |
38 |
30 |
32 |
| IE-L121516 |
15/16" |
40 |
30 |
34 |
| IE-L1201 |
1" |
40 |
30 |
36 |
| IE-L1201116 |
1-1/16" |
43 |
30 |
38 |
| IE-L12118 |
1-1/8" |
43 |
30 |
40 |
| IE-L1201316 |
1-3/16" |
43 |
30 |
42 |
| IE-L12114 |
1-1/4" |
43 |
30 |
44 |
| IE-L120156 |
1-5/16" |
48 |
38 |
46 |
| IE-L120138 |
1-3/8" |
48 |
38 |
48 |
| IE-L1201716 |
1-7/16" |
48 |
38 |
50 |
| IE-L120112 |
1-1/2" |
48 |
38 |
52 |
