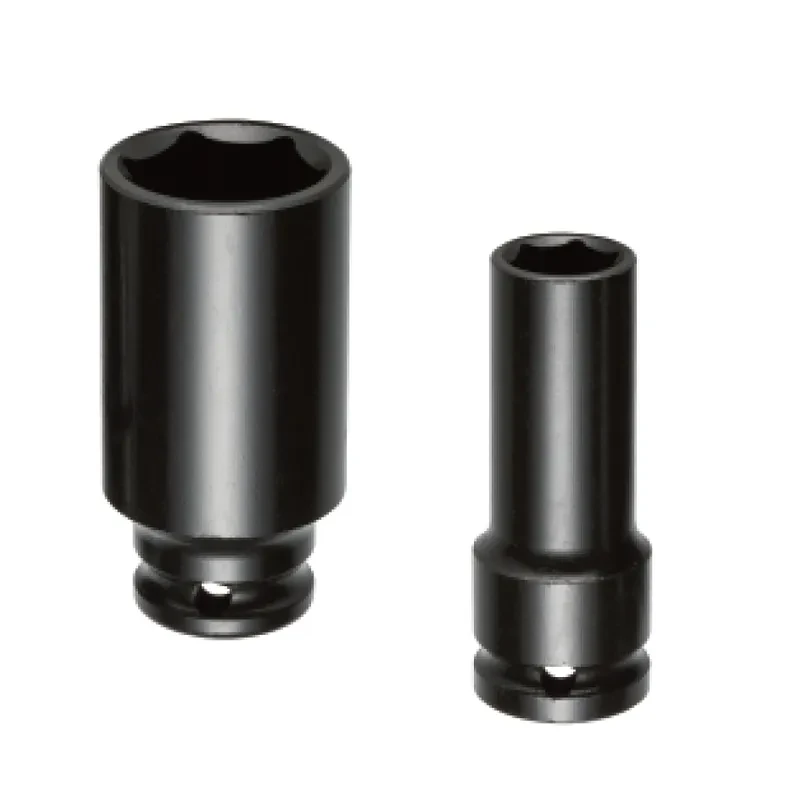

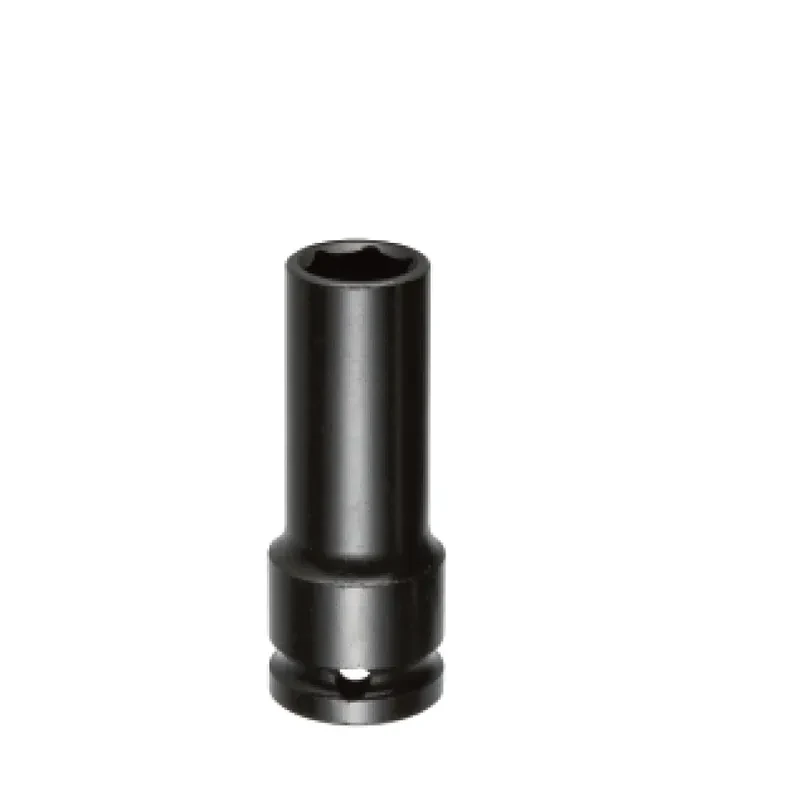

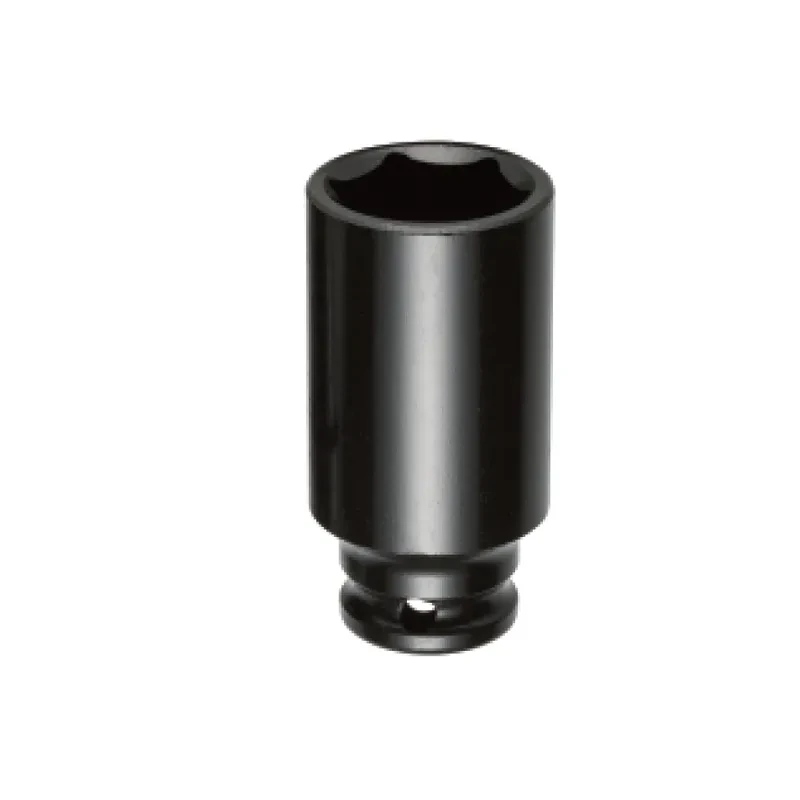

1/2" 深度衝擊套筒 6PT 3121
規範 (SAE)
| 類型 |
項目編號 |
尺寸 |
L(MM) |
D2 |
D1 |

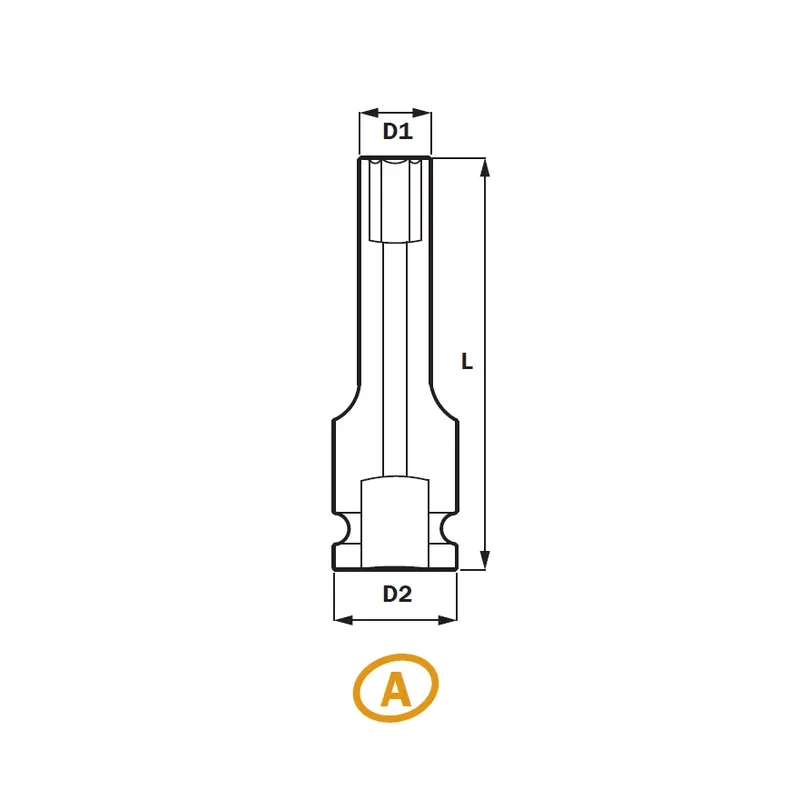

| A |
IE-L12516 |
5/16" |
38 |
25 |
14 |
|
IE-L12038 |
3/8" |
38 |
25 |
17 |
|
IE-L12716 |
7/16" |
38 |
25 |
18 |
|
IE-L12012 |
1/2" |
38 |
25 |
21 |
|
IE-L12916 |
9/16" |
38 |
25 |
22 |
|
IE-L1258 |
5/8" |
38 |
30 |
24 |
|
IE-L121116 |
11/16" |
38 |
30 |
26 |
|
IE-L12034 |
3/4" |
38 |
30 |
28 |

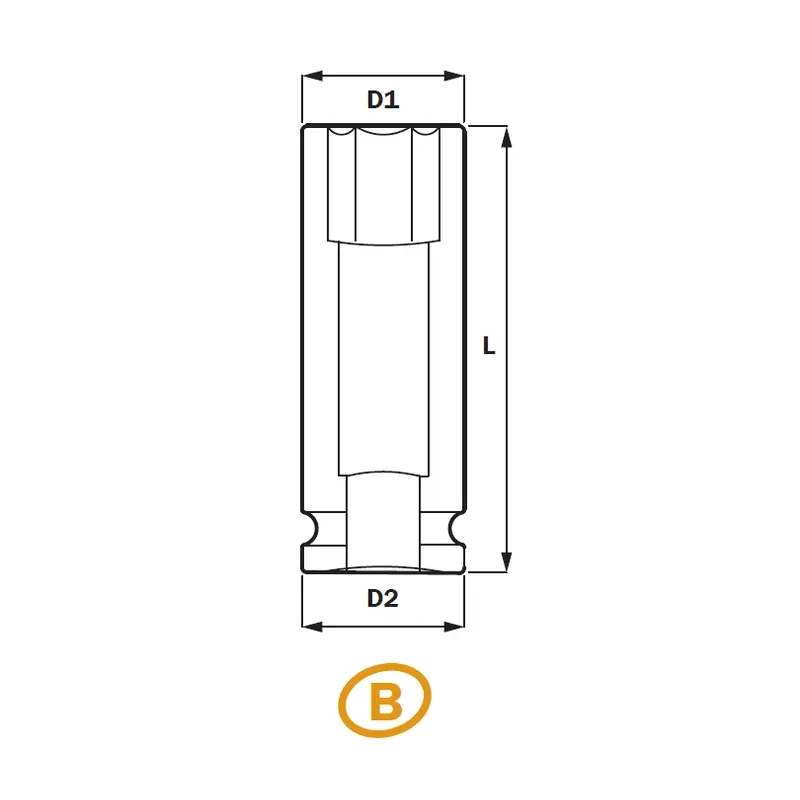

| B |
IE-L121316 |
13/16" |
38 |
30 |
30 |

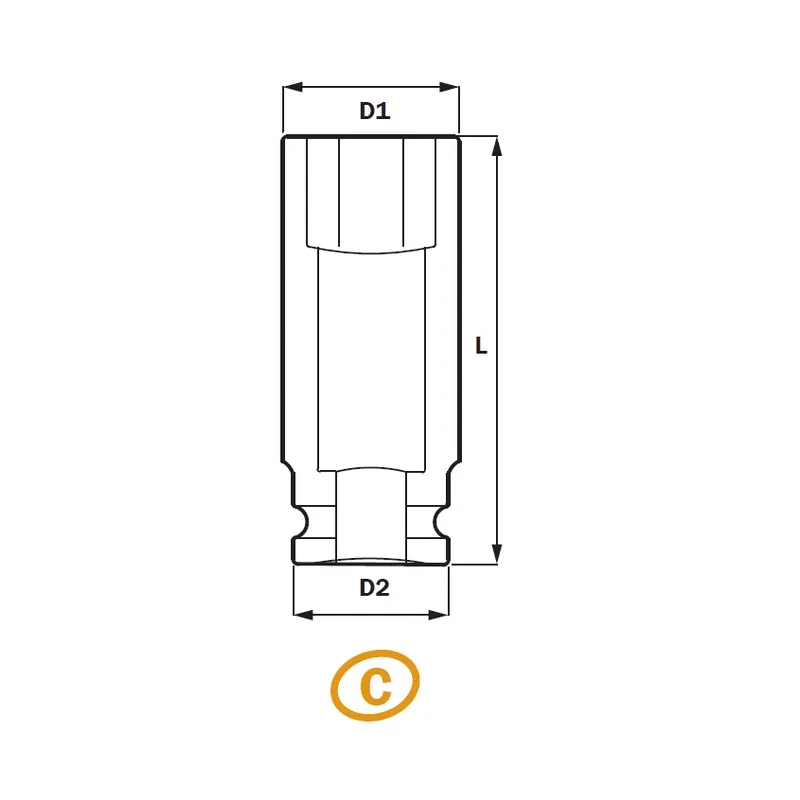

| C |
IE-L1278 |
7/8" |
38 |
30 |
32 |
| IE-L121516 |
15/16" |
40 |
30 |
34 |
| IE-L1201 |
1" |
40 |
30 |
36 |
| IE-L1201116 |
1-1/16" |
43 |
30 |
38 |
| IE-L12118 |
1-1/8" |
43 |
30 |
40 |
| IE-L1201316 |
1-3/16" |
43 |
30 |
42 |
| IE-L12114 |
1-1/4" |
43 |
30 |
44 |
| IE-L120156 |
1-5/16" |
48 |
38 |
46 |
| IE-L120138 |
1-3/8" |
48 |
38 |
48 |
| IE-L1201716 |
1-7/16" |
48 |
38 |
50 |
| IE-L120112 |
1-1/2" |
48 |
38 |
52 |
