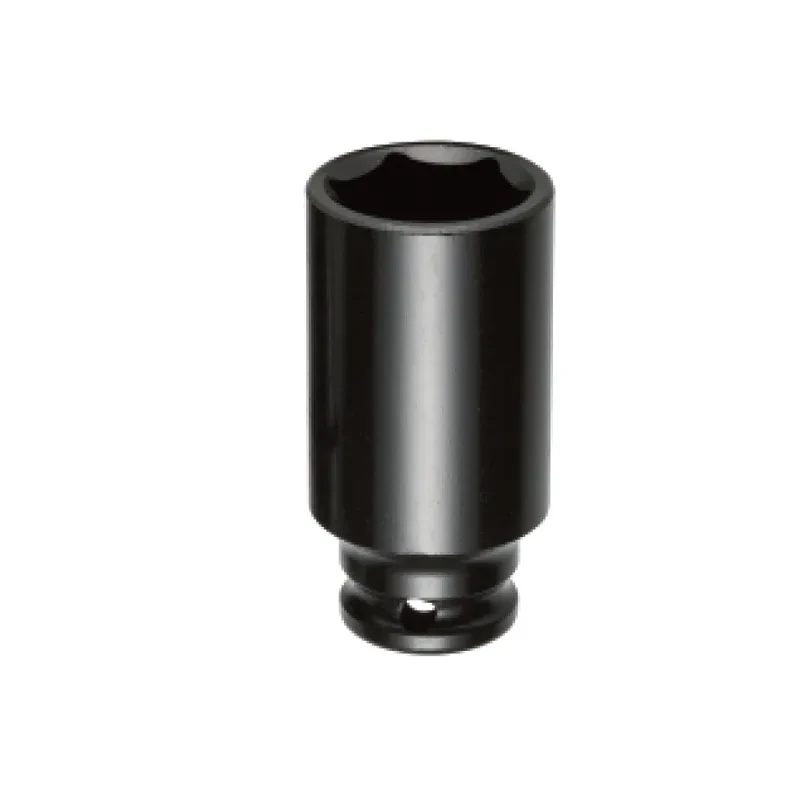

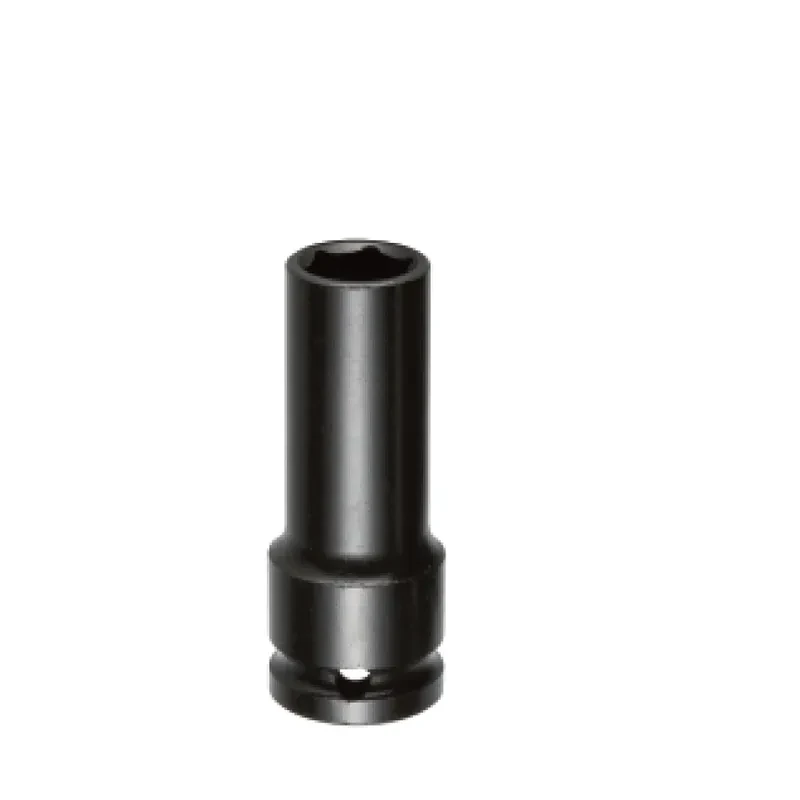

1/2" Deep Impact Socket 6PT 3121
Specification (SAE)

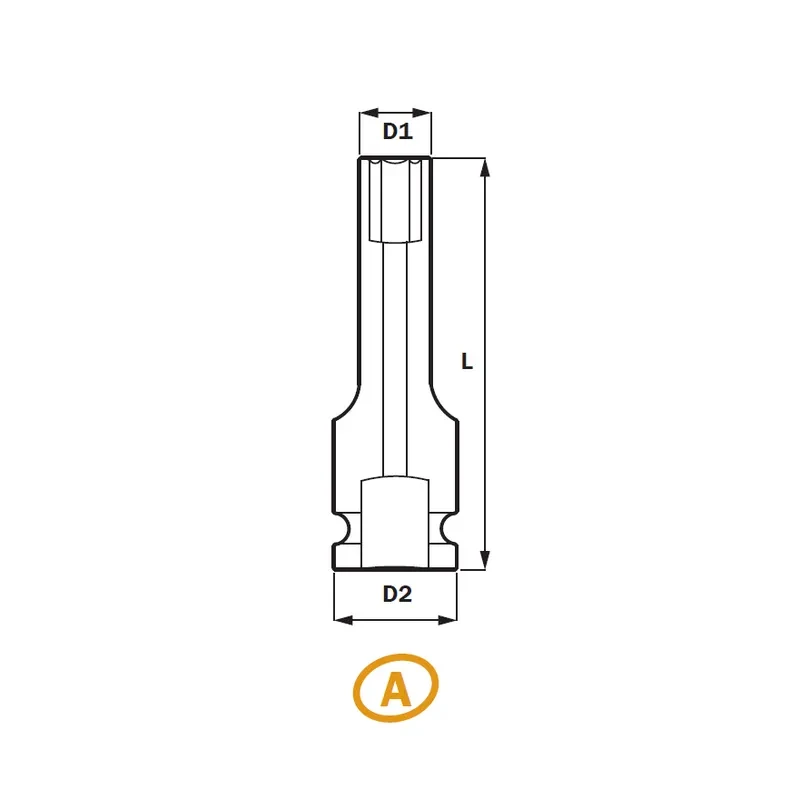

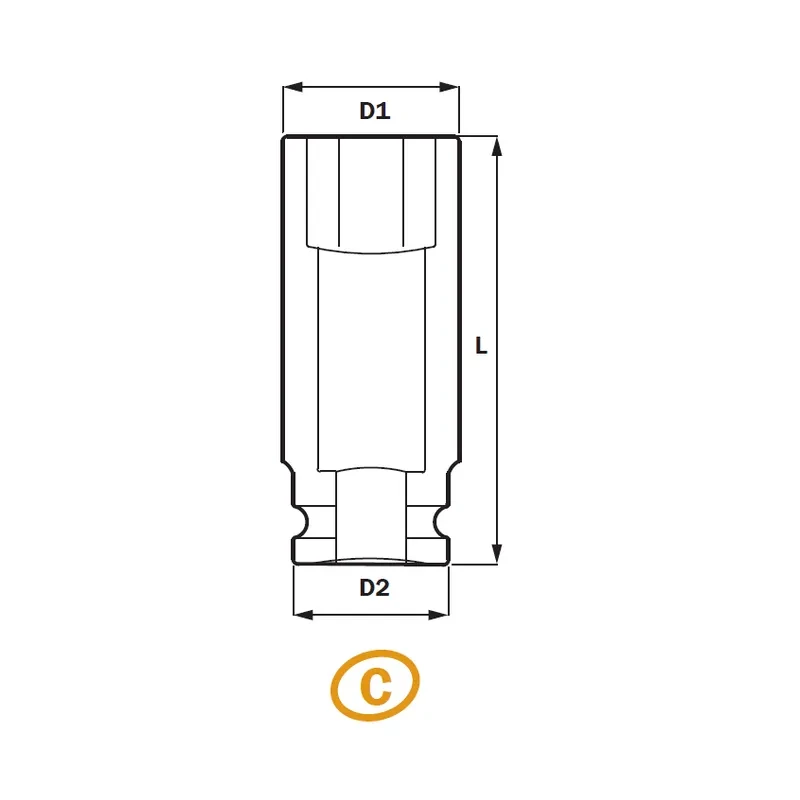

| TYPE | ITEM NO | SIZE | L(MM) | D2 | D1 |
| A | IE-L12516 | 5/16" | 38 | 25 | 14 |
| IE-L12038 | 3/8" | 38 | 25 | 17 | |
| IE-L12716 | 7/16" | 38 | 25 | 18 | |
| IE-L12012 | 1/2" | 38 | 25 | 21 | |
| IE-L12916 | 9/16" | 38 | 25 | 22 | |
| IE-L1258 | 5/8" | 38 | 30 | 24 | |
| IE-L121116 | 11/16" | 38 | 30 | 26 | |
| IE-L12034 | 3/4" | 38 | 30 | 28 | |
| B | IE-L121316 | 13/16" | 38 | 30 | 30 |
| C | IE-L1278 | 7/8" | 38 | 30 | 32 |
| IE-L121516 | 15/16" | 40 | 30 | 34 | |
| IE-L1201 | 1" | 40 | 30 | 36 | |
| IE-L1201116 | 1-1/16" | 43 | 30 | 38 | |
| IE-L12118 | 1-1/8" | 43 | 30 | 40 | |
| IE-L1201316 | 1-3/16" | 43 | 30 | 42 | |
| IE-L12114 | 1-1/4" | 43 | 30 | 44 | |
| IE-L120156 | 1-5/16" | 48 | 38 | 46 | |
| IE-L120138 | 1-3/8" | 48 | 38 | 48 | |
| IE-L1201716 | 1-7/16" | 48 | 38 | 50 | |
| IE-L120112 | 1-1/2" | 48 | 38 | 52 |
