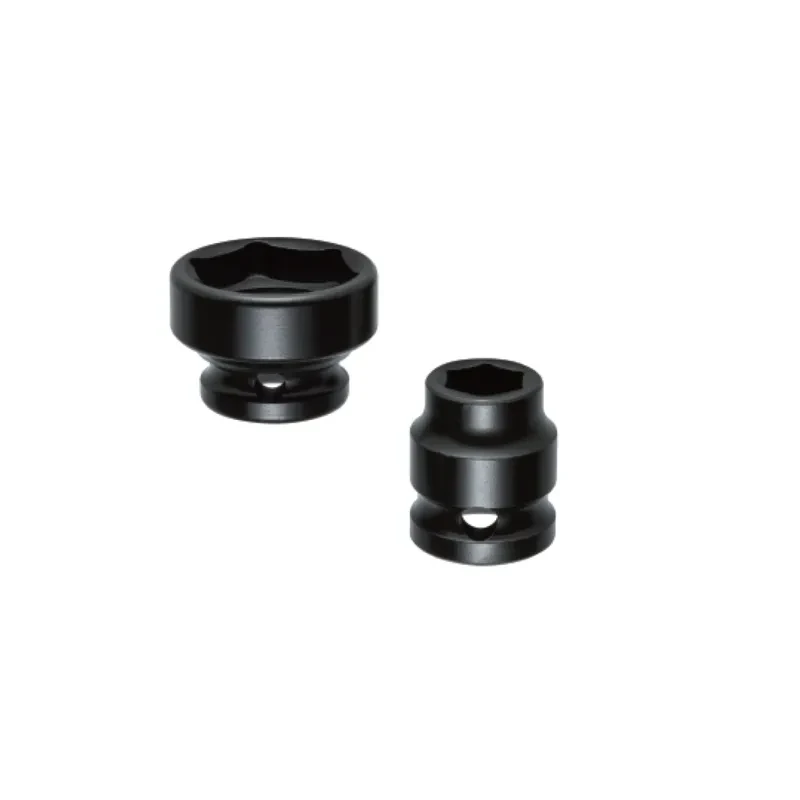

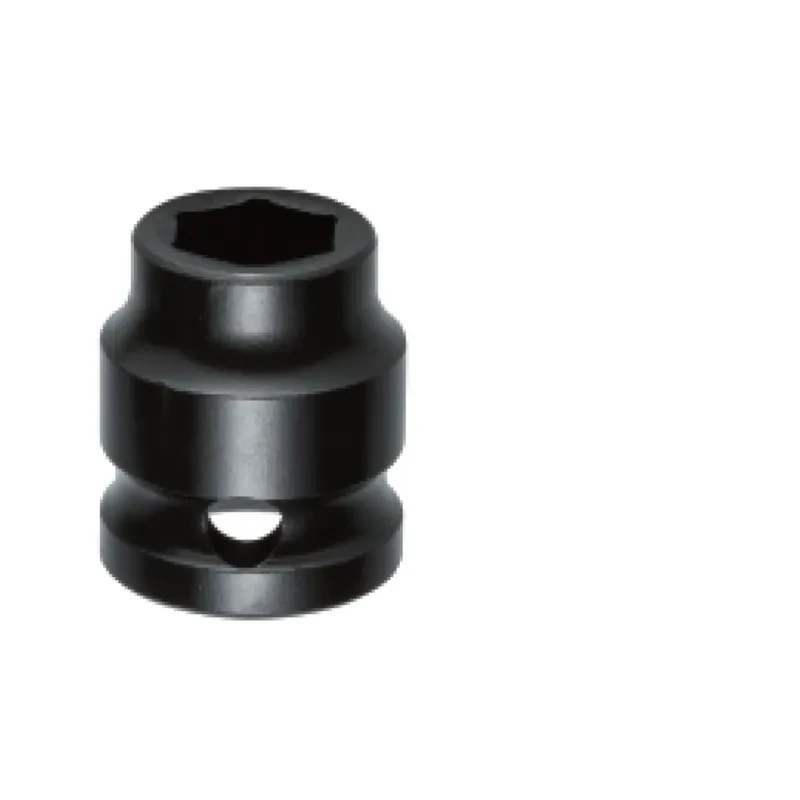

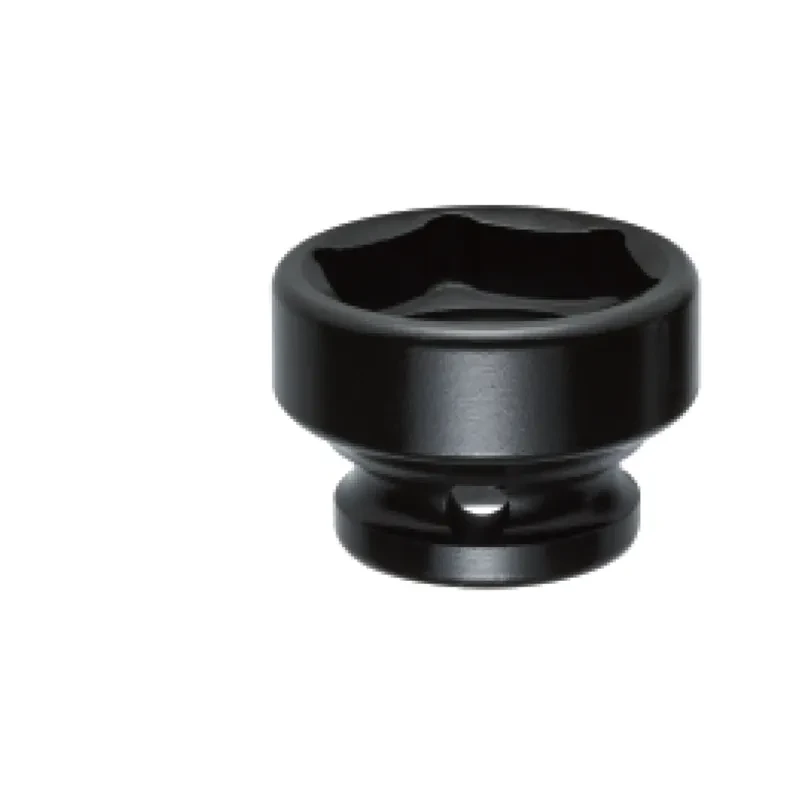

3/8" 超短衝擊套筒 6PT
規格 (MM)
| 類型 |
項目編號 |
尺寸 |
長度 (MM) |
D2 |
D1 |

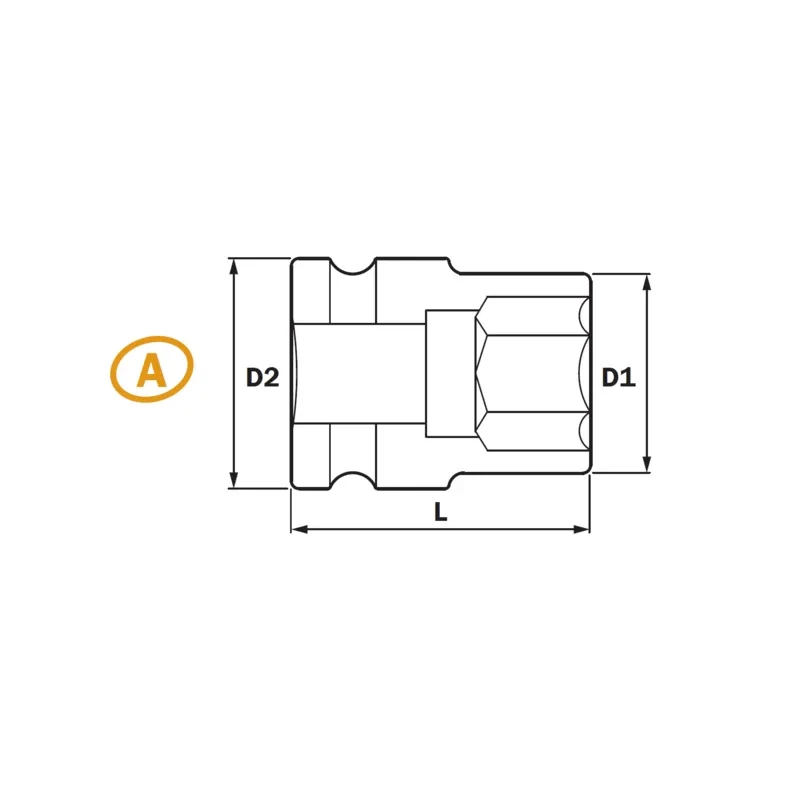

| A |
IE-SS3808 |
8 |
22 |
19 |
13.5 |
| IE-SS3809 |
9 |
22 |
19 |
14.5 |
| IE-SS3810 |
10 |
22 |
19 |
15.8 |
| IE-SS3811 |
11 |
22 |
19 |
17 |
| IE-SS3812 |
12 |
22 |
19 |
18.2 |
| IE-SS3813 |
13 |
22 |
22 |
19.5 |
| IE-SS3814 |
14 |
22 |
22 |
20.8 |

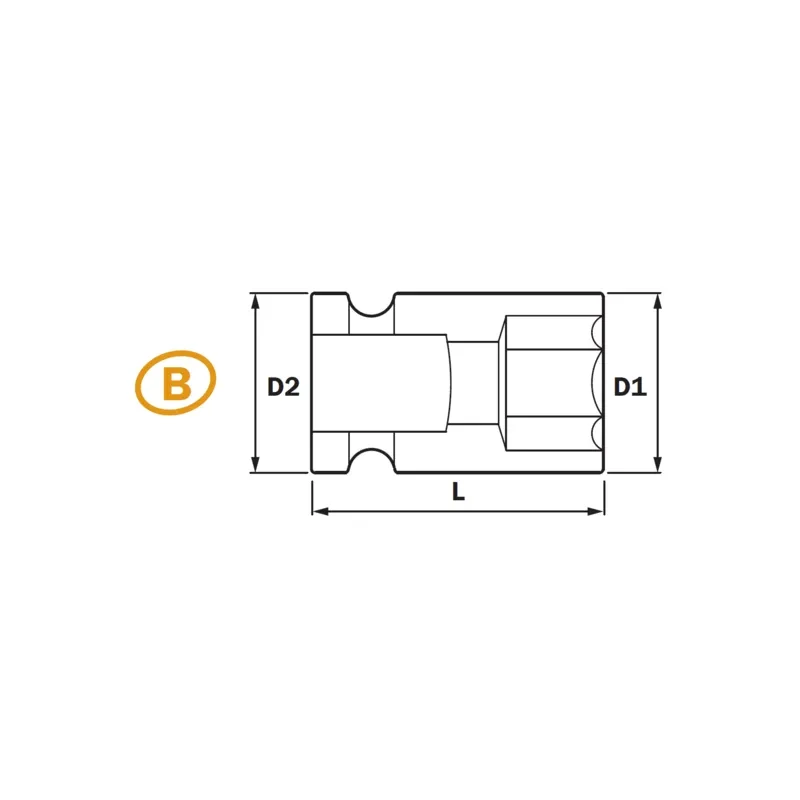

| B |
IE-SS3815 |
15 |
22 |
22 |
22 |
| C |
IE-SS3816 |
16 |
22 |
22 |
23.8 |
| IE-SS3817 |
17 |
22 |
22 |
23.8 |
| IE-SS3818 |
18 |
22 |
22 |
25.8 |
| IE-SS3819 |
19 |
22 |
22 |
27.8 |
| IE-SS3820 |
20 |
22 |
22 |
27.8 |
| IE-SS3821 |
21 |
22 |
22 |
29.8 |
| IE-SS3822 |
22 |
22 |
22 |
31.8 |
| IE-SS3823 |
23 |
22 |
22 |
31.8 |
| IE-SS3824 |
24 |
22 |
22 |
33.8 |
規範 (SAE)
| 類型 |
項目編號 |
尺寸 |
L(MM) |
D2 |
D1 |
| A |
IE-S38014 |
1/4" |
22 |
19 |
11.3 |
| IE-S38516 |
5/16" |
22 |
19 |
13.5 |
| IE-S3838 |
3/8" |
22 |
19 |
14.6 |
| IE-S38716 |
7/16" |
22 |
19 |
17.1 |
| IE-S38012 |
1/2" |
22 |
19 |
19 |
| B |
IE-S38916 |
9/16" |
22 |
22 |
22 |
| C |
IE-S3858 |
5/8" |
22 |
22 |
23.5 |
| IE-S381116 |
11/16" |
22 |
22 |
24 |
| IE-S3834 |
3/4" |
22 |
22 |
28 |
| IE-S381316 |
13/16" |
22 |
22 |
30 |
| IE-S3878 |
7/8" |
22 |
22 |
32 |
| IE-S381516 |
15/16" |
22 |
22 |
32 |
| IE-S3801 |
1" |
22 |
22 |
34 |
